Vehicle Exploded View - APRILIA MINI RX 50 Entry 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

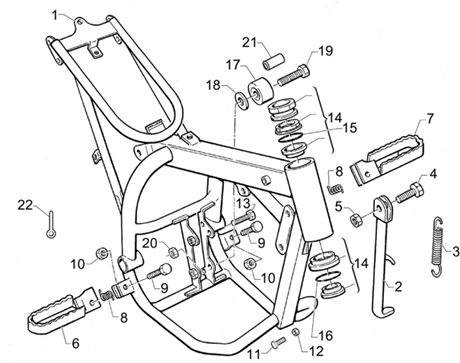

Chassis : 28.09 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/298/Mini_RX_Entry_2003_28.09.PNG)
1 |
Chassis |
||||||
|
2 |
Béquille |
||||||
|
3 |
Ressort |
||||||
|
4 |
Vis |
||||||
|
5 |
Écrou |
||||||
|
6 |
Couvercle rep-pieds pass.D |
||||||
|
7 |
Couvercle rep-pieds pass.G |
||||||
|
8 |
Ressort |
||||||
|
9 |
PERNO |
||||||
|
10 |
ROSETTA |
||||||
|
11 |
Vis |
||||||
|
12 |
Écrou |
||||||
|
13 |
Vis |
||||||
|
14 |
AP8350397 - SERIE STERZO CPL. More informationQuantity required : 1 |
||||||
|
15 |
Joint torique |
||||||
|
16 |
Bague |
||||||
|
17 |
Roulette tendeur de chaîne |
||||||
|
18 |
Rondelle |
||||||
|
19 |
Vis |
||||||
|
20 |
Écrou |
||||||
|
21 |
Entretoise |
||||||
|
22 |
AP8350323 - COPIGLIA More informationQuantity required : 2 |
