Vehicle Exploded View - APRILIA MINI RX 50 Entry 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

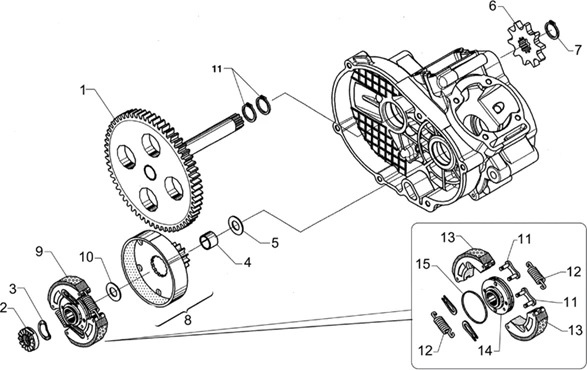

Moteur : 29.03 TRANSMISSION-EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/298/Mini_RX_Entry_2003_29.03.PNG)
1 |
Couronne |
||||||
|
2 |
Écrou |
||||||
|
3 |
Ressort |
||||||
|
4 |
Douille |
||||||
|
5 |
Rondelle |
||||||
|
6 |
Pignon |
||||||
|
7 |
Bague |
||||||
|
8 |
Cloche embrayage |
||||||
|
9 |
Moyeu |
||||||
|
10 |
Entretoise |
||||||
|
11 |
Rondelle |
||||||
|
12 |
Ressort |
||||||
|
13 |
Sabots embr. |
||||||
|
14 |
Moyeu |
||||||
|
15 |
Joint torique |
