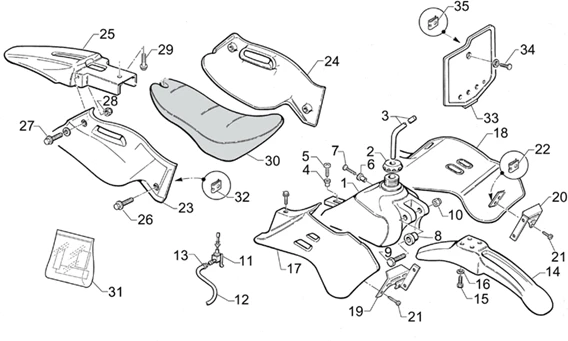

Vehicle Exploded View - APRILIA MINI RX 50 Entry 2003 APRILIA

Chassis : 28.14 CARROSSERIE
Carrosserie
Search
Réservoir

1
P2R reference P2R reference
Maker reference Maker reference AP8350373

Réservoir

Bouchon

2
P2R reference P2R reference
Maker reference Maker reference AP8350374

Bouchon

AP8350273 - TUBO SFIATO

3
P2R reference P2R reference 60986
Maker reference Maker reference AP8350273

AP8350273 - TUBO SFIATO

More information

Quantity required : 1

Douille

4
P2R reference P2R reference
Maker reference Maker reference AP8350389

Douille

Vis

5
P2R reference P2R reference
Maker reference Maker reference AP8350286

Vis

Entretoise

6
P2R reference P2R reference
Maker reference Maker reference AP8350376

Entretoise

Vis

7
P2R reference P2R reference
Maker reference Maker reference AP8350282

Vis

Cale

8
P2R reference P2R reference
Maker reference Maker reference AP8350388

Cale

Vis

9
P2R reference P2R reference
Maker reference Maker reference AP8350284

Vis

Écrou

10
P2R reference P2R reference
Maker reference Maker reference AP8350320

Écrou

AP8350375 - RUBINETTO BENZINA

11
P2R reference P2R reference 60995
Maker reference Maker reference AP8350375

AP8350375 - RUBINETTO BENZINA

More information

Quantity required : 1

Tuyau essence

12
P2R reference P2R reference
Maker reference Maker reference AP8350274

Tuyau essence

Collier

13
P2R reference P2R reference
Maker reference Maker reference AP8350347

Collier

Garde-boue AV

14
P2R reference P2R reference
Maker reference Maker reference AP8350364

Garde-boue AV

Vis

15
P2R reference P2R reference
Maker reference Maker reference AP8350298

Vis

Rondelle

16
P2R reference P2R reference
Maker reference Maker reference AP8350309

Rondelle

Convoyeur D

17
P2R reference P2R reference
Maker reference Maker reference AP8350366

Convoyeur D

Convoyeur G

18
P2R reference P2R reference
Maker reference Maker reference AP8350367

Convoyeur G

Grille droite

19
P2R reference P2R reference
Maker reference Maker reference AP8350420

Grille droite

Grille gauche

20
P2R reference P2R reference
Maker reference Maker reference AP8350419

Grille gauche

Vis

21
P2R reference P2R reference
Maker reference Maker reference AP8350299

Vis

Écrou

22
P2R reference P2R reference
Maker reference Maker reference AP8350348

Écrou

Aile D

23
P2R reference P2R reference
Maker reference Maker reference AP8350368

Aile D

Aile G

24
P2R reference P2R reference
Maker reference Maker reference AP8350369

Aile G

Garde-boue arrière

25
P2R reference P2R reference
Maker reference Maker reference AP8350424

Garde-boue arrière

Vis

26
P2R reference P2R reference
Maker reference Maker reference AP8350301

Vis

Vis

27
P2R reference P2R reference
Maker reference Maker reference AP8350303

Vis

Écrou

28
P2R reference P2R reference
Maker reference Maker reference AP8350319

Écrou

Vis

29
P2R reference P2R reference
Maker reference Maker reference AP8350302

Vis

Selle

30
P2R reference P2R reference
Maker reference Maker reference AP8350372

Selle

Décalco série

31
P2R reference P2R reference
Maker reference Maker reference AP8350479

Décalco série

Écrou

32
P2R reference P2R reference
Maker reference Maker reference AP8350349

Écrou

Tableau pour le nombre

33
P2R reference P2R reference
Maker reference Maker reference AP8350365

Tableau pour le nombre

Vis

34
P2R reference P2R reference
Maker reference Maker reference AP8350301

Vis

Écrou

35
P2R reference P2R reference
Maker reference Maker reference AP8350349

Écrou
