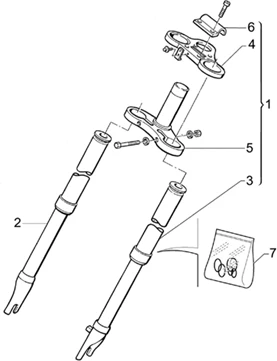

Vehicle Exploded View - APRILIA MINI RX 50 Entry 2003 APRILIA

Chassis : 28.11 FOURCHE
Fourche
Search
Fourche complète

1
P2R reference P2R reference
Maker reference Maker reference AP8350454

Fourche complète

Tige droite

2
P2R reference P2R reference
Maker reference Maker reference AP8350222

Tige droite

Tige gauche

3
P2R reference P2R reference
Maker reference Maker reference AP8350223

Tige gauche

Plaque sup. fourche

4
P2R reference P2R reference
Maker reference Maker reference AP8350218

Plaque sup. fourche

Base avec tube

5
P2R reference P2R reference
Maker reference Maker reference AP8350217

Base avec tube

Cavalier

6
P2R reference P2R reference
Maker reference Maker reference AP8350220

Cavalier

Sachet joints

7
P2R reference P2R reference
Maker reference Maker reference AP8350226

Sachet joints
