Vehicle Exploded View - APRILIA MINI RX 50 Entry 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

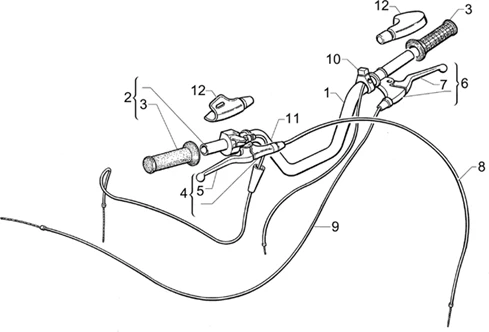

Chassis : 28.13 GUIDON CPL.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/298/Mini_RX_Entry_2003_28.13.PNG)
1 |
AP8350356 - MANUBRIO More informationQuantity required : 1 |
||||||
|
2 |
AP8350357 - COMANDO GAS More informationQuantity required : 1 |
||||||
|
3 |
AP8350416 - MANOPOLE-COPPIA More informationQuantity required : 1 |
||||||
|
4 |
Commande frein AV |
||||||
|
5 |
Levier frein avant |
||||||
|
6 |
Levier frein arrière |
||||||
|
7 |
Levier de frein AR |
||||||
|
8 |
Câble frein avant |
||||||
|
9 |
Câble frein arrière |
||||||
|
10 |
Interr.stop mot. |
||||||
|
11 |
Câble gaz |
||||||
|
12 |
Protection |
