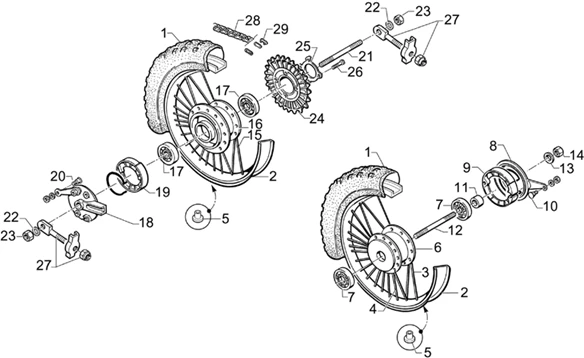

Vehicle Exploded View - APRILIA MINI RX 50 Entry 2003

Chassis : 28.15 ROUES-FREINS

Roues-Freins

Search

1

	P2R reference
	Maker reference	AP8350261

Pneumatique

2

	P2R reference
	Maker reference	AP8350343

Jante

3

	P2R reference
	Maker reference	AP8350337

Rayon

4

	P2R reference
	Maker reference	AP8350338

Rayon

5

	P2R reference
	Maker reference	AP8350329

Nipple

6

	P2R reference
	Maker reference	AP8350459

Moyeu

7

	P2R reference
	Maker reference	AP8350260

Roulement

8

	P2R reference
	Maker reference	AP8350446

Plaque porte-sabots

9

	P2R reference
	Maker reference	AP8350006

Sabots à ress-paire

10

	P2R reference
	Maker reference	AP8350325

Vis

11

	P2R reference
	Maker reference	AP8350003

Entretoise

12

	P2R reference
	Maker reference	AP8350004

Axe de roue AV

13

	P2R reference
	Maker reference	AP8350005

Rondelle

14

	P2R reference
	Maker reference	AP8350328

Écrou

15

	P2R reference
	Maker reference	AP8350336

Rayon

16

	P2R reference
	Maker reference	AP8350480

Moyeu arrière

17

	P2R reference
	Maker reference	AP8350260

Roulement

18

	P2R reference
	Maker reference	AP8350407

Couvercle

19

	P2R reference
	Maker reference	AP8350408

Sabots à ress-paire

20

	P2R reference
	Maker reference	AP8350325

Vis

21

	P2R reference
	Maker reference	AP8350404

Axe de roue AV

22

	P2R reference	60989
	Maker reference	AP8350311

AP8350311 - ROSETTA

More information

Quantity required : 2

23

	P2R reference
	Maker reference	AP8350328

Écrou

24

	P2R reference
	Maker reference	AP8350409

Couronne

25

	P2R reference
	Maker reference	AP8350327

Rondelle

26

	P2R reference
	Maker reference	AP8350324

Vis

27

	P2R reference	60994
	Maker reference	AP8350371

AP8350371 - TENDICATENA

More information

Quantity required : 2

28

	P2R reference
	Maker reference	AP8350268

Chaîne

29

	P2R reference
	Maker reference	AP8350269

Maillon de jonction
