Vehicle Exploded View - DERBI QUAND 250 QUAD DXR 250cc 2005 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

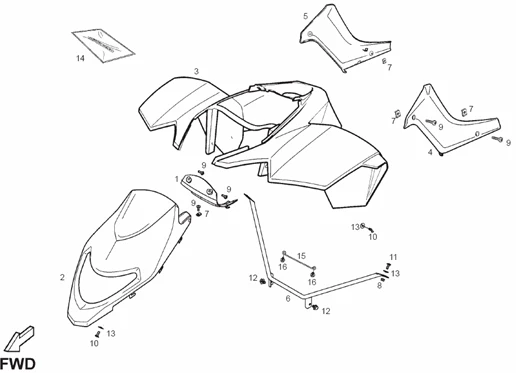

Châssis - parties plastiques - carrosseries : 11 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1103/QUAD_DXR_250cc_2005_3ª_edicion_11.png)
1 |
00Q25001594 - INTERIOR CARENADO FRONTAL More informationQuantity required : 1 |
||||||
|
2 |
00Q25001595 - CARENADO FRONTAL More informationQuantity required : 1 |
||||||
|
3 |
00Q25001596 - CARENADO DEPOSITO ROJO 05 More informationQuantity required : 1 |
||||||
|
3 |
00Q25001749 - CARENADO DEPOSITO NEGRO More informationQuantity required : 1 |
||||||
|
4 |
00Q25001597 - CARENADO LATERAL IZQ. More informationQuantity required : 1 |
||||||
|
5 |
00Q25001598 - CARENADO LATERAL DRCH More informationQuantity required : 1 |
||||||
|
6 |
00Q25001599 - SOPORTE CARENADO DEPOSITO More informationQuantity required : 1 |
||||||
|
7 |
00Q25001435 - TUERCA More informationQuantity required : 1 |
||||||
|
8 |
00Q25001455 - TUERCA More informationQuantity required : 1 |
||||||
|
9 |
00Q25001464 - TORNILLO More informationQuantity required : 1 |
||||||
|
10 |
00Q25001658 - TORNILLO More informationQuantity required : 1 |
||||||
|
11 |
00Q25001659 - TORNILLO More informationQuantity required : 1 |
||||||
|
12 |
00Q25001620 - TORNILLO More informationQuantity required : 1 |
||||||
|
13 |
00Q25001661 - ARANDELA More informationQuantity required : 1 |
||||||
|
14 |
00Q25001609 - JUEGO CALCAS DXR250 2005 More informationQuantity required : 1 |
||||||
|
15 |
00Q25001660 - VARILLA More informationQuantity required : 1 |
||||||
|
16 |
00Q25001620 - TORNILLO More informationQuantity required : 1 |
