Vehicle Exploded View - DERBI QUAND 250 QUAD DXR 250cc 2005 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

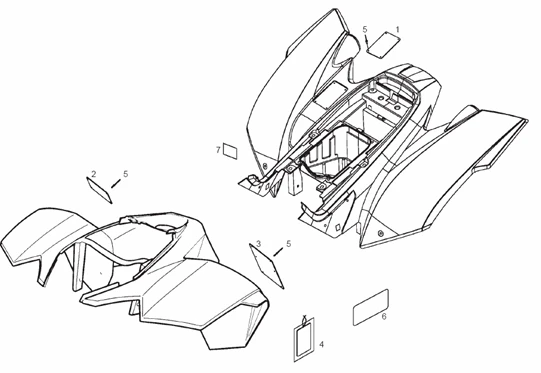

Châssis - parties plastiques - carrosseries : 42 PLAQUETTES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1103/QUAD_DXR_250cc_2005_3ª_edicion_42.png)
1 |
00Q25001588 - ADESIVO More informationQuantity required : 1 |
||||||
|
2 |
00Q25001589 - ADESIVO More informationQuantity required : 1 |
||||||
|
3 |
00Q25001590 - ADESIVO More informationQuantity required : 1 |
||||||
|
4 |
00Q25001591 - ETIQUETA More informationQuantity required : 1 |
||||||
|
5 |
00Q25001592 - REMACHE More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
00Q25001671 - WARNING More informationQuantity required : 1 |
