Vehicle Exploded View - DERBI QUAND 250 QUAD DXR 250cc 2005 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

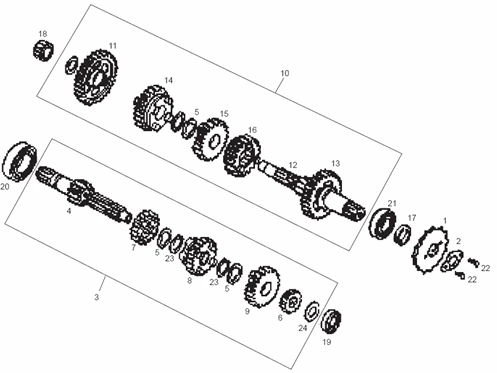

Moteur : 29 TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1103/QUAD_DXR_250cc_2005_3ª_edicion_29.png)
1 |
00Q25001101 - PIÐON More informationQuantity required : 1 |
||||||
|
2 |
00Q25001102 - PLACA FIJACIËN More informationQuantity required : 1 |
||||||
|
3 |
00Q25001110 - CTO. EJE PRIMARIO More informationQuantity required : 1 |
||||||
|
4 |
00Q25001111 - EJE PRIMARIO More informationQuantity required : 1 |
||||||
|
5 |
00Q25001112 - ARANDELA More informationQuantity required : 1 |
||||||
|
6 |
00Q25001113 - PIÐËN 2A EJE PRIMARIO More informationQuantity required : 1 |
||||||
|
7 |
00Q25001114 - PIÐËN 3A EJE PRIMARIO More informationQuantity required : 1 |
||||||
|
8 |
00Q25001115 - PIÐËN 4A EJE PRIMARIO More informationQuantity required : 1 |
||||||
|
9 |
00Q25001116 - PIÐËN A5 EJE PRIMARIO More informationQuantity required : 1 |
||||||
|
10 |
00Q25001117 - CTO. EJE SECUNDARIO More informationQuantity required : 1 |
||||||
|
11 |
00Q25001118 - ENGRANAJE More informationQuantity required : 1 |
||||||
|
12 |
00Q25001119 - EJE SECUNDARIO More informationQuantity required : 1 |
||||||
|
13 |
00Q25001120 - PIÐËN 2A EJE SECUNDARIO More informationQuantity required : 1 |
||||||
|
14 |
00Q25001121 - PIÐËN 3A EJE SECUNDARIO More informationQuantity required : 1 |
||||||
|
15 |
00Q25001122 - PIÐËN 4A EJE SECUNDARIO More informationQuantity required : 1 |
||||||
|
16 |
00Q25001123 - PIÐËN A5 EJE SECUNDARIO More informationQuantity required : 1 |
||||||
|
17 |
00Q25001346 - RET+N ACEITE More informationQuantity required : 1 |
||||||
|
18 |
00Q25001365 - COJINETE AGUJAS More informationQuantity required : 1 |
||||||
|
19 |
00Q25001371 - COJINETES More informationQuantity required : 1 |
||||||
|
20 |
00Q25001369 - COJINETE More informationQuantity required : 1 |
||||||
|
21 |
00Q25001372 - COJINETE More informationQuantity required : 1 |
||||||
|
22 |
00Q25001466 - TORNILLO More informationQuantity required : 1 |
||||||
|
23 |
00Q25001525 - CIRCLIP 20MM More informationQuantity required : 1 |
||||||
|
24 |
00Q25001544 - ARANDELA More informationQuantity required : 1 |
||||||
|
25 |
00Q25001546 - ARANDELA More informationQuantity required : 1 |
