Vehicle Exploded View - DERBI QUAND 250 QUAD DXR 250cc 2005 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

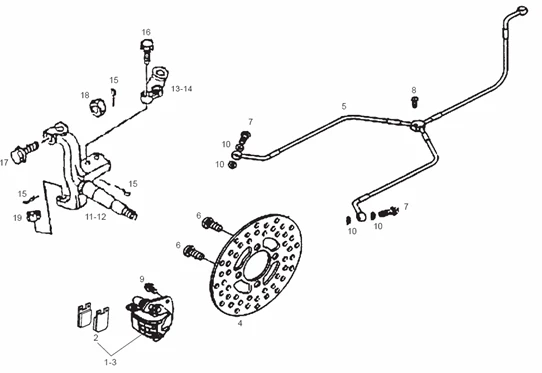

Moteur : 008B ROULEAU DE GUIDAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1103/QUAD_DXR_250cc_2005_3ª_edicion_008B.png)
1 |
00Q25001628 - PINZA FRENO DT. IZQUIERDA More informationQuantity required : 1 |
||||||
|
2 |
00Q25001640 - JUEGO PASTILLAS DE FRENO More informationQuantity required : 1 |
||||||
|
3 |
00Q25001630 - PINZA FRENO DT. DERECHA More informationQuantity required : 1 |
||||||
|
4 |
00Q25001631 - DISCO DE FRENO More informationQuantity required : 1 |
||||||
|
5 |
00Q25001632 - TUBO HIDRAULICO More informationQuantity required : 1 |
||||||
|
6 |
00Q25001412 - TORNILLO More informationQuantity required : 1 |
||||||
|
7 |
00Q25001426 - RACORD More informationQuantity required : 1 |
||||||
|
8 |
00Q25001498 - TORNILLO More informationQuantity required : 1 |
||||||
|
9 |
00Q25001506 - TORNILLO More informationQuantity required : 1 |
||||||
|
10 |
00Q25001555 - ARANDELA More informationQuantity required : 1 |
||||||
|
11 |
00Q25001633 - MANDO DIRECCION IZQUIERDO More informationQuantity required : 1 |
||||||
|
12 |
00Q25001634 - MANDO DIRECCION DERECHO More informationQuantity required : 1 |
||||||
|
13 |
00Q25001210 - SOPORTE IZQUIERDO More informationQuantity required : 1 |
||||||
|
14 |
00Q25001212 - SOPORTE DERECHO More informationQuantity required : 1 |
||||||
|
15 |
00Q25001336 - PASADOR More informationQuantity required : 1 |
||||||
|
16 |
00Q25001427 - TORNILLO More informationQuantity required : 1 |
||||||
|
17 |
00Q25001429 - TORNILLO More informationQuantity required : 1 |
||||||
|
18 |
00Q25001449 - TUERCA More informationQuantity required : 1 |
||||||
|
19 |
00Q25001451 - TUERCA More informationQuantity required : 1 |
