Vehicle Exploded View - DERBI QUAND 250 QUAD DXR 250cc 2005 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

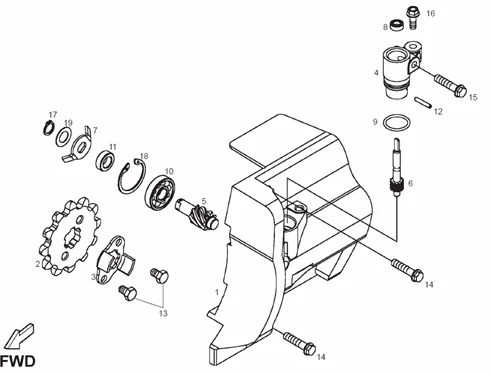

Moteur : 24 RENVOI COMPTEUR KM
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1103/QUAD_DXR_250cc_2005_3ª_edicion_24.png)
1 |
00Q25001072 - TAPA CARTER POSTERIOR IZ. More informationQuantity required : 1 |
||||||
|
2 |
00Q25001101 - PIÐON More informationQuantity required : 1 |
||||||
|
3 |
00Q25001103 - PLACA More informationQuantity required : 1 |
||||||
|
4 |
00Q25001173 - ENGRANAJE More informationQuantity required : 1 |
||||||
|
5 |
00Q25001202 - PIÐËN More informationQuantity required : 1 |
||||||
|
6 |
00Q25001203 - PIÐËN More informationQuantity required : 1 |
||||||
|
7 |
00Q25001204 - EMBRAGUE CUENTAKILËMETROS More informationQuantity required : 1 |
||||||
|
8 |
00Q25001343 - RET+N ACEITE More informationQuantity required : 1 |
||||||
|
9 |
00Q25001354 - ANILLO More informationQuantity required : 1 |
||||||
|
10 |
00Q25001367 - COJINETE More informationQuantity required : 1 |
||||||
|
11 |
00Q25001381 - CASQUILLO More informationQuantity required : 1 |
||||||
|
12 |
00Q25001397 - CASQUILLO More informationQuantity required : 1 |
||||||
|
13 |
00Q25001466 - TORNILLO More informationQuantity required : 1 |
||||||
|
14 |
00Q25001488 - TORNILLO More informationQuantity required : 1 |
||||||
|
15 |
00Q25001498 - TORNILLO More informationQuantity required : 1 |
||||||
|
16 |
00Q25001500 - TORNILLO More informationQuantity required : 1 |
||||||
|
17 |
00Q25001520 - CIRCLIP STW-10 More informationQuantity required : 1 |
||||||
|
18 |
00Q25001524 - CIRCLIP RTW-30 More informationQuantity required : 1 |
||||||
|
19 |
00Q25001535 - ARANDELA More informationQuantity required : 1 |
