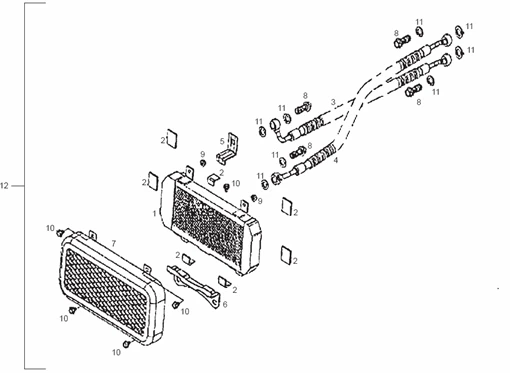

Moteur : 39 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1103/QUAD_DXR_250cc_2005_3ª_edicion_39.png)
1 |
00Q25001611 - SCTO. RADIADOR More informationQuantity required : 1 |
||||||
|
2 |
00Q25001612 - TOPE RADIADOR More informationQuantity required : 1 |
||||||
|
3 |
00Q25001613 - TUBO SUPERIOR RADIADOR More informationQuantity required : 1 |
||||||
|
4 |
00Q25001614 - TUBO INFERIOR RADIADOR More informationQuantity required : 1 |
||||||
|
5 |
00Q25001615 - SOPORTE SUPERIOR RADIADOR More informationQuantity required : 1 |
||||||
|
6 |
00Q25001616 - SOPORTE INFERIOR RADIADOR More informationQuantity required : 1 |
||||||
|
7 |
00Q25001617 - PROTECTOR RADIADOR More informationQuantity required : 1 |
||||||
|
8 |
00Q25001618 - RACORD More informationQuantity required : 1 |
||||||
|
9 |
00Q25001619 - TUERCA More informationQuantity required : 1 |
||||||
|
10 |
00Q25001620 - TORNILLO More informationQuantity required : 1 |
||||||
|
11 |
00Q25001621 - ARANDALA JUNTA RACORD More informationQuantity required : 1 |
||||||
|
12 |
00Q25001610 - CTO. RADIADOR COMPLETO More informationQuantity required : 1 |
