Vehicle Exploded View - DERBI QUAND 250 QUAD DXR 250cc 2005 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

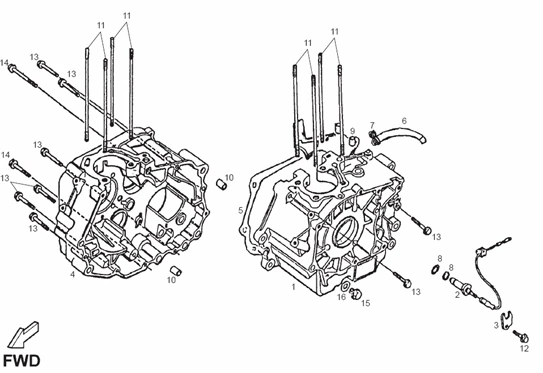

Moteur : 30 CARTERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1103/QUAD_DXR_250cc_2005_3ª_edicion_30.png)
1 |
00Q25001063 - CARTER IZ. More informationQuantity required : 1 |
||||||
|
2 |
00Q25001064 - INTERRUPTOR NEUTRAL More informationQuantity required : 1 |
||||||
|
3 |
00Q25001065 - FIJACION CABLEADO More informationQuantity required : 1 |
||||||
|
4 |
00Q25001066 - CARTER DR. More informationQuantity required : 1 |
||||||
|
5 |
00Q25001068 - JUNTA More informationQuantity required : 1 |
||||||
|
6 |
00Q25001069 - TUBO More informationQuantity required : 1 |
||||||
|
7 |
00Q25001333 - CLIP More informationQuantity required : 1 |
||||||
|
8 |
00Q25001352 - JUNTA More informationQuantity required : 1 |
||||||
|
9 |
00Q25001391 - CASQUILLO More informationQuantity required : 1 |
||||||
|
10 |
00Q25001395 - CASQUILLO CENTRADOR More informationQuantity required : 1 |
||||||
|
11 |
00Q25001434 - TORNILLO More informationQuantity required : 1 |
||||||
|
12 |
00Q25001487 - TORNILLO More informationQuantity required : 1 |
||||||
|
13 |
00Q25001492 - TORNILLO More informationQuantity required : 1 |
||||||
|
14 |
00Q25001502 - TORNILLO More informationQuantity required : 1 |
||||||
|
15 |
00Q25001514 - TORNILLO More informationQuantity required : 1 |
||||||
|
16 |
00Q25001556 - ARANDELA More informationQuantity required : 1 |
