Vehicle Exploded View - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

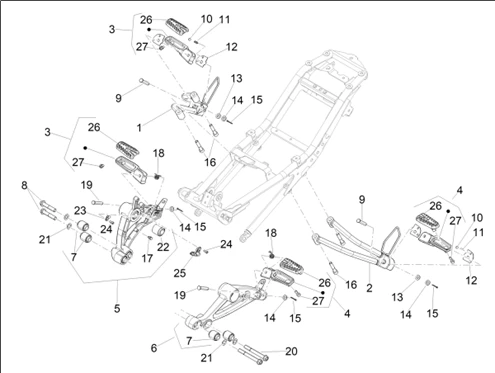

Châssis/coque : 01.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_01.02.png)
1 |
2B011314 - SUPPORT R-P. D PASS. More informationQuantity required : 1 |
||||||
|
2 |
2B011313 - SUPPORT R-P. G PASS. More informationQuantity required : 1 |
||||||
|
3 |
SP2B011388 - COUVERCLE REP-PIEDS PASS.D More informationQuantity required : 2 |
||||||
|
4 |
SP2B011387 - COUVERCLE REP-PIEDS PASS.G More informationQuantity required : 2 |
||||||
|
5 |
2B013962 - SUPPORT R-P. PASS.DR. More informationQuantity required : 1 |
||||||
|
6 |
2B013963 - SUP.PL.PILOTE GCHE More informationQuantity required : 1 |
||||||
|
7 |
2B012866 - SILENT-BLOCK MOTEUR More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/4/img/67364.jpg)
8 |
598838 - VIS More informationQuantity required : 2 |
||||||
|
9 |
2B009229 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/4/img/71274.jpg)
10 |
AP8110110 - BILLE D.7 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
11 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/2/8/6/img/212286.jpg)
12 |
2B011307 - PLAQUE FIN DE COURSE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.jpg)
13 |
AP8120592 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
14 |
003058 - RONDELLE S00305800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/2/8/7/img/212287.jpg)
15 |
2B011998 - GOUPILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/3/img/68593.jpg)
16 |
826298 - VIS More informationQuantity required : 4 |
||||||
|
17 |
2B004785 - PIVOT FIX. RESSORT More informationQuantity required : 1 |
||||||
|
18 |
2B011200 - RESSORT RETOUR REPOSE-PIEDS More informationQuantity required : 2 |
||||||
|
19 |
2B009229 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
|
20 |
AP8152482 - VIS BRIDE M10X85 More informationQuantity required : 2 |
||||||
|
21 |
2B012126 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
22 |
2B005210 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
23 |
859777 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
24 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 1 |
||||||
|
25 |
2D000787 - BOUTON STOP More informationQuantity required : 1 |
||||||
|
26 |
2B011129 - CAOUTCHOUC REP-PIEDS More informationQuantity required : 4 |
||||||
|
27 |
2B011210 - TIGE More informationQuantity required : 4 |
