Vehicle Exploded View - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

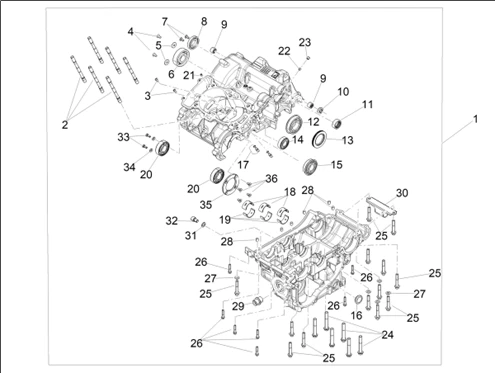

Moteur : 03.03 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_03.03.png)
1 |
SP1A020893 - COMPLETE CRANKCASE More informationQuantity required : 1 |
||||||
|
2 |
1A020894 - GOUJON More informationQuantity required : 6 |
||||||
|
3 |
1A024025 - VIS More informationQuantity required : 2 |
||||||
|
4 |
1A024024 - VIS A TETE FRAISEE More informationQuantity required : 2 |
||||||
|
5 |
1A024249 - RONDELLE EVASEE More informationQuantity required : 2 |
||||||
|
6 |
1A024180R - ROULEMENT RADIAL More informationQuantity required : 1 |
||||||
|
7 |
1A024025 - VIS More informationQuantity required : 2 |
||||||
|
8 |
1A025098R - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
|
9 |
1A024178R - CAGE A AIGUILLES 12X8X12 More informationQuantity required : 2 |
||||||
|
10 |
1A023673 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
11 |
1A024177R - CAGE A ROUL. More informationQuantity required : 1 |
||||||
|
12 |
1A024179R - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
|
13 |
1A023670 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
14 |
1A025322R - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
|
15 |
1A025105R - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
|
16 |
1A024537 - INDICATEUR NIVEAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/7/2/2/img/177722.jpg)
17 |
1A018625 - BUSE DE REFROIDISSEMENT PISTON More informationQuantity required : 2 |
||||||
|
18 |
CM342801 - DEMI-ROULEMENT DE VILEBREQUIN BLEU More informationQuantity required : 3 |
||||||
|
18 |
CM342802 - DEMI-ROULEMENT DE VILEBREQUIN ROUGE More informationQuantity required : 3 |
||||||
|
19 |
CM342901 - CRANKSHAFT HALF BEARING More informationQuantity required : 3 |
||||||
|
19 |
CM342902 - CRANKSHAFT HALF BEARING More informationQuantity required : 3 |
||||||
|
20 |
1A002957 - ROULEMENT RADIAL A BILLES More informationQuantity required : 2 |
||||||
|
21 |
1A024985 - GICLEUR CALIBRE More informationQuantity required : 1 |
||||||
|
22 |
1A009339 - GICLEUR CALIBRE More informationQuantity required : 1 |
||||||
|
23 |
1A020900 - BOUCHON More informationQuantity required : 1 |
||||||
|
24 |
1A024021 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
25 |
1A007618 - VIS More informationQuantity required : 13 |
||||||
|
26 |
B018853 - VIS More informationQuantity required : 7 |
||||||
|
27 |
1A024234 - RONDELLE More informationQuantity required : 7 |
||||||
|
28 |
1A024233 - GOUPILLE More informationQuantity required : 6 |
||||||
|
29 |
1A026669 - VIS SPECIALE DE FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
30 |
2B006844 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/8/3/img/151383.jpg)
31 |
1A011500 - RONDELLE More informationQuantity required : 1 |
||||||
|
32 |
1A024269 - VIS More informationQuantity required : 1 |
||||||
|
33 |
1A024032 - VIS TORX More informationQuantity required : 2 |
||||||
|
34 |
1A024104 - RONDELLE PLATE More informationQuantity required : 2 |
||||||
|
35 |
1A020877 - BAGUE RETENUE More informationQuantity required : 1 |
||||||
|
36 |
1A024024 - VIS A TETE FRAISEE More informationQuantity required : 4 |
