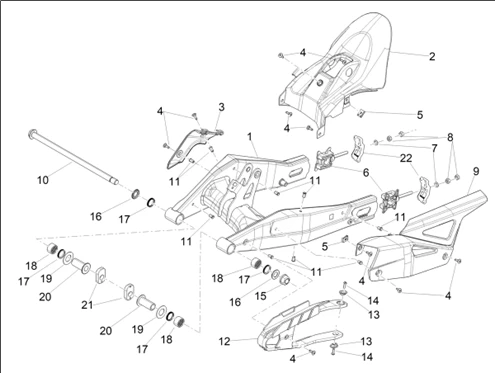

Châssis/coque : 01.05 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_01.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/2/9/3/img/212293.jpg)
1 |
2B012037 - FOURCHE P. More informationQuantity required : 1 |
||||||
2 |
2B011173 - GARDE-BOUE AR. More informationQuantity required : 1 |
||||||
|
3 |
2B010834 - PROTECT.DTE More informationQuantity required : 1 |
||||||
|
4 |
2B011940 - VIS BRIDE More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
||||||
|
6 |
2B011526 - PATIN TENDEUR DE CHAINE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
7 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
8 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 4 |
||||||
|
9 |
2B011174 - COUVRE CHAONES More informationQuantity required : 1 |
||||||
|
10 |
2B010755 - PIVOT FOURCHE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
11 |
AP8201755 - RIVET FILETE More informationQuantity required : 11 |
||||||
|
12 |
2B010672 - GALET GUIDE-CHAINE More informationQuantity required : 1 |
||||||
|
13 |
2B011064 - RONDELLE POUR PATIN More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
14 |
SCREW - (5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER -B0167965 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/3/img/146193.jpg)
15 |
NUT - FOR REAR/FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 125-350-500 X10/APRILIA 50 SCARABEO, SR H2O -1C002565- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/0/4/img/171504.jpg)
16 |
2B005460 - SPACER More informationQuantity required : 2 |
||||||
|
17 |
2B012914 - RADIAL SHAFT SEAL Ø22XØ28X4 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/4/img/45824.jpg)
18 |
AP8110067 - CAGE A ROULEAUX More informationQuantity required : 3 |
||||||
|
19 |
2B007102 - WASHER More informationQuantity required : 2 |
||||||
|
20 |
2B005212 - BUSH More informationQuantity required : 2 |
||||||
|
21 |
2B010720 - INSERT BRAS OSCILLANT More informationQuantity required : 2 |
||||||
|
22 |
2B010089 - PLAQUETTE More informationQuantity required : 1 |
