Vehicle Exploded View - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

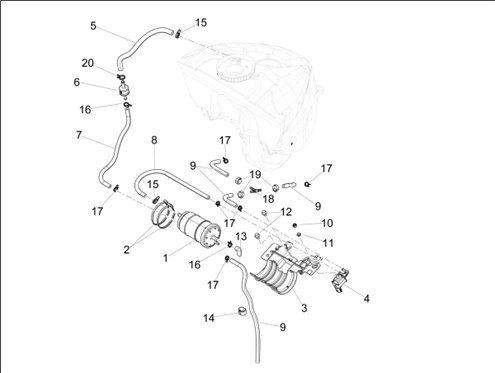

Réservoir : 09.02 SYS.RÉCUP.VAP.ESS.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_09.02.png)
1 |
2B011065 - CANISTER SENTEC 309016 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
2 |
AP8120657 - COLLIER More informationQuantity required : 2 |
||||||
|
3 |
2B011440 - SUPPORT CANISTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/9/0/img/178690.jpg)
4 |
1A017882 - PURGE SOLENOID VALVE More informationQuantity required : 1 |
||||||
|
5 |
CM339104 - HOSE SAE J30 R11-A/R12 1/4" L=210 More informationQuantity required : 1 |
||||||
|
6 |
CM179001 - CLAPET SURETE More informationQuantity required : 1 |
||||||
|
7 |
CM340404 - HOSE SAE J30 R11-A O R-12 3/16" More informationQuantity required : 1 |
||||||
|
8 |
CM340405 - HOSE SAE J30 R11-A O R-12 3/16" More informationQuantity required : 1 |
||||||
|
9 |
CM283455 - CANISTER VENT HOSE More informationQuantity required : 1 |
||||||
|
10 |
709116 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
11 |
AP8121811 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
12 |
B016426 - VIS TEF M6X14 More informationQuantity required : 2 |
||||||
|
13 |
2B012060 - PIPETTE More informationQuantity required : 1 |
||||||
|
14 |
2B012001 - COLLIER éL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
15 |
CM002907 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
16 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
|
17 |
CM002904 - COLLIER More informationQuantity required : 2 |
||||||
|
18 |
AP8104666 - RACCORD 3 VOIES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
19 |
CM001901 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/8/img/72898.jpg)
20 |
CM002917 - COLLIER More informationQuantity required : 1 |
