Vehicle Exploded View - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

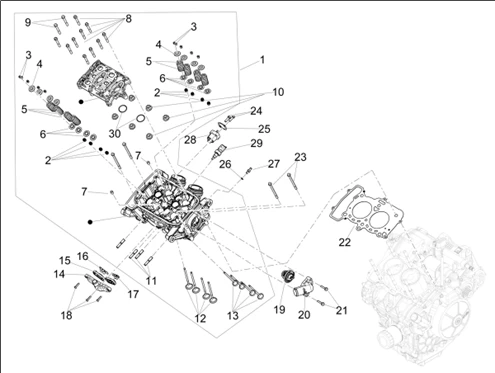

Moteur : 03.10 CULASSE - SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_03.10.png)
1 |
1A0205404 - COMPLETE CYLINDER HEAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/0/1/img/111201.jpg)
2 |
83054R - BAGUE ETANCHEITEE VM More informationQuantity required : 8 |
||||||
|
3 |
1A021968 - DEMI-CLAVETTE SOUPAPE More informationQuantity required : 16 |
||||||
|
4 |
1A021250 - GODET SUPERIEUR More informationQuantity required : 4 |
||||||
|
5 |
1A024777 - RESSORT DE RAPPEL SOUPAPE More informationQuantity required : 8 |
||||||
|
6 |
1A024778 - GODET INFERIEUR More informationQuantity required : 4 |
||||||
|
7 |
1A024235 - GOUJON More informationQuantity required : 2 |
||||||
|
8 |
1A024266 - FLANGED HEXAGONAL HEAD SCREW More informationQuantity required : 10 |
||||||
|
9 |
1A024047 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
10 |
1A024237 - FALNGED HEX NUT STANDARD More informationQuantity required : 6 |
||||||
|
11 |
1A023821 - GOUJON More informationQuantity required : 4 |
||||||
|
12 |
1A020560 - SOUPAPE D'ADMISSION More informationQuantity required : 4 |
||||||
|
13 |
1A026456 - SOUPAPE D'ECHAPPEMENT More informationQuantity required : 4 |
||||||
|
14 |
1A022687 - COUVERCLE More informationQuantity required : 1 |
||||||
|
15 |
1A022685 - AIR VALV More informationQuantity required : 2 |
||||||
|
16 |
1A023872 - FLAME TRAP DIAPHRAGM CHAIN SIDE More informationQuantity required : 1 |
||||||
|
17 |
1A023871 - FLAME TRAP DIAPHRAGM More informationQuantity required : 1 |
||||||
|
18 |
1A024270 - VIS More informationQuantity required : 3 |
||||||
|
19 |
1A021484 - THERMOSTAT More informationQuantity required : 1 |
||||||
|
20 |
1A023720 - COUVERCLE THERMOSTAT More informationQuantity required : 1 |
||||||
|
21 |
1A024068 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
22 |
1A024543R - JOINT CULASSE/CYLINDRE More informationQuantity required : 1 |
||||||
|
23 |
1A024045 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
24 |
018639 - VIS More informationQuantity required : 2 |
||||||
|
25 |
1A024276 - JOINT More informationQuantity required : 1 |
||||||
|
26 |
1A024247 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
27 |
1A024248 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/7/7/3/img/177773.jpg)
28 |
1A018752 - COMPLETE CHAIN TIGHTENER SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
29 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER/GILERA 50 SMT, RCR 2018> -640485 More informationQuantity required : 1 |
||||||
|
30 |
1A020918 - O-RING (26.7X1.78) More informationQuantity required : 1 |
