Vehicle Exploded View - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

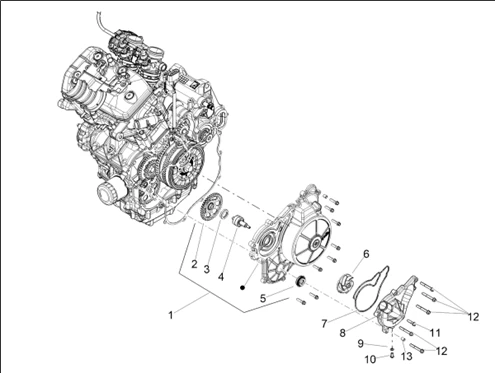

Moteur : 03.21 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_03.21.png)
1 |
SP1A022716 - FLYWHEEL COVER WITH I.P. More informationQuantity required : 1 |
||||||
|
2 |
1A023036 - ENGRENAGE POMPE A EAU More informationQuantity required : 1 |
||||||
|
3 |
1A023676 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
4 |
SP1A021328 - COMPLETE BEARING SHAFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
5 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R More informationQuantity required : 1 |
||||||
|
6 |
1A020876 - WATER PUMP FAN More informationQuantity required : 2 |
||||||
|
7 |
1A020871 - JOINT POMPE More informationQuantity required : 1 |
||||||
|
8 |
1A020862 - COUVERCLE POMPE EAU More informationQuantity required : 1 |
||||||
|
9 |
1A024247 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
10 |
1A010966 - VIS A TETE HEXAGONALE BRIDEE More informationQuantity required : 1 |
||||||
|
11 |
1A024028 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
12 |
1A024266 - FLANGED HEXAGONAL HEAD SCREW More informationQuantity required : 5 |
||||||
|
13 |
1A024235 - GOUJON More informationQuantity required : 1 |
