Vehicle Exploded View - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

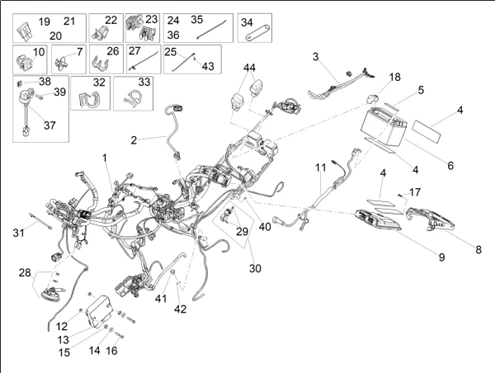

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_11.01.png)
1 |
1D005178 - MAIN HARNESS (USA) More informationQuantity required : 1 |
|||||||||
|
2 |
2D000792 - CâBLAGE POMPE ESSENCE More informationQuantity required : 1 |
|||||||||
|
3 |
2D000773 - CâBLAGE LUMIèRE PLAQUE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8144552 - GOMMA LAT. APPOGGIO BATTERIA More informationQuantity required : 1 |
|||||||||
|
5 |
2B008990 - EPONGE ADHéSIVE More informationQuantity required : 1 |
|||||||||
|
6 |
498239 - BATTERIE YUASA 12V/9 AH (E) YTX9-BS More informationQuantity required : 1 |
|||||||||
|
7 |
890760 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
8 |
2B010935 - PROTECTION BOîTIER éLECTRONIQUE More informationQuantity required : 1 |
|||||||||
|
9 |
CM3329047 - CENTRALE ELECTRONIQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
10 |
CM013203 - RESSORT More informationQuantity required : 3 |
|||||||||
|
11 |
2D000772 - CâBLE BATTERIE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
12 |
241936 - ECROU More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/1/img/158251.jpg)
13 |
1A012332 - REGULATEUR DE TENSION More informationQuantity required : 1 |
|||||||||
|
14 |
227838 - RONDELLE PLATE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
15 |
AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/1/0/img/152910.jpg)
16 |
1A003063 - VIS More informationQuantity required : 2 |
|||||||||
|
17 |
601039 - BOULON More informationQuantity required : 2 |
|||||||||
|
18 |
895701 - CAPUCHON More informationQuantity required : 1 |
|||||||||
|
19 |
CM225607 - FUSIBLE More informationQuantity required : 1 |
|||||||||
|
20 |
CM225610 - More informationQuantity required : 1 |
|||||||||
|
21 |
CM225615 - More informationQuantity required : 1 |
|||||||||
|
22 |
AP8221310 - PASSE-CABLE More informationQuantity required : 1 |
|||||||||
|
23 |
2D000348 - CONNECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
24 |
1D001143 - COLLIER More informationQuantity required : 1 |
|||||||||
|
25 |
1D001143 - COLLIER More informationQuantity required : 1 |
|||||||||
|
26 |
|
|||||||||
|
27 |
2D000676 - CLAMP More informationQuantity required : 1 |
|||||||||
|
28 |
2B013641 - KLAXON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
29 |
CM225730 - FUSIBLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
30 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R- More informationQuantity required : 1 |
|||||||||
|
31 |
1D003720R - ROOM TEMPERATURE SENSOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
32 |
CM013201 - RESSORT More informationQuantity required : 6 |
|||||||||
|
33 |
668762 - COLLIER More informationQuantity required : 2 |
|||||||||
|
34 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
35 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
36 |
257134 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/9/img/67969.jpg)
37 |
642248 - SENSOR DE CHUTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
38 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/0/1/img/178701.jpg)
39 |
1A014986 - TORX HEAD SCREW M5X21 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/6/img/67226.jpg)
40 |
581596 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
41 |
B016426 - VIS TEF M6X14 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
42 |
006976 - RONDELLE S00697600 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
43 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
44 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 2 |
|||||||||
