Eclatés de véhicule - PIAGGIO FLY 125 4T 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

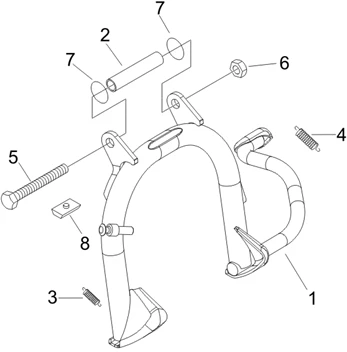

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/61/Fly_125_4T_2006-2007_02.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/5/0/8/img/67508.jpg)
1 |
BEQUILLE CENTRALE ORIGINE PIAGGIO 50 FLY 4T 2006>2011, 125 FLY 2006>2011/APRILIA 50 SPORT-CITY ONE 4T 2008>2011, 125 SPORT-CITY ONE 2008>2011 -601708 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
2 |
ENTRETOISE DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -582298 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/8/img/67208.jpg)
3 |
RESSORT DE BEQUILLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -581248 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/9/img/67209.jpg)
4 |
RESSORT DE BEQUILLE CENTRALE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -581249 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/5/img/65625.jpg)
5 |
VIS TH (10X130) DE BEQUILLE CENTRALE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -030115 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
6 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
7 |
JOINT AXE DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -273754 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/4/img/67224.jpg)
8 |
TAMPON/CAOUTCHOUC DE BEQUILLE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER -581560 Plus d'informationsQuantité requise : 1 |
