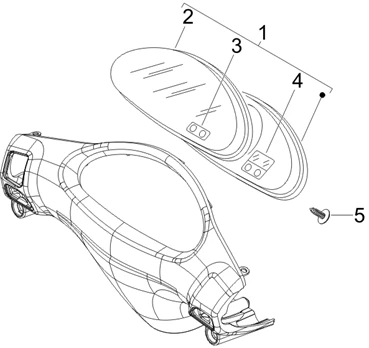

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/61/Fly_125_4T_2006-2007_03.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/0/img/66970.jpg)
0 |
PILE HORLOGE ORIGINE PIAGGIO 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998>2004/GILERA 50 STALKER -498342 Plus d'informationsQuantité requise : 1 |
||||||
1 |
COMPTEUR ORIGINE PIAGGIO 125 FLY 2006>2011 -641159- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/8/4/img/66784.jpg)
2 |
VITRE DE COMPTEUR ORIGINE PIAGGIO 50-125 FLY 2000>2011 -494518 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
494519 - POUSSOIR Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
494521 - HORLOGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
5 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 4 |
