Vehicle Exploded View - APRILIA RSV4 1100 Factory E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

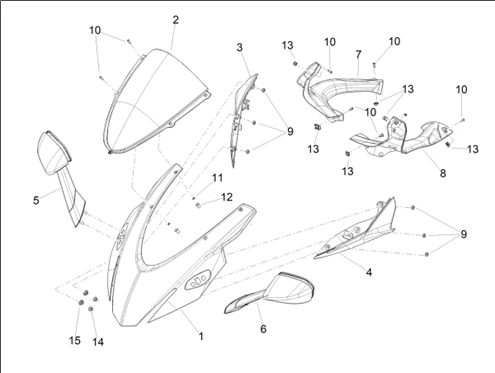

Carrosserie : 02.04 AVANT CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_02.04.png)
1 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606- More informationQuantity required : 1 |
||||||
|
1 |
2B012898 - AVANT CARENE More informationQuantity required : 1 |
||||||
|
2 |
2B008656 - VITRE COUPOLE More informationQuantity required : 1 |
||||||
|
3 |
2B008656 - VITRE COUPOLE More informationQuantity required : 1 |
||||||
|
4 |
2B013332 - MOULURE AVANT D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/3/2/6/img/178326.jpg)
5 |
2B008412 - MIROIR RETROVISEUR D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/3/2/5/img/178325.jpg)
6 |
2B008413 - LH REAR MIRROR More informationQuantity required : 1 |
||||||
|
7 |
2B008413 - LH REAR MIRROR More informationQuantity required : 1 |
||||||
|
8 |
2B013037 - FERMETURE CARENAGE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
9 |
181351 - PLAQUETTE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
10 |
581957 - VIS More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/2/img/70832.jpg)
11 |
895916 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
12 |
AP8144564 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
13 |
AP8102381 - CLIP More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/5/img/50905.jpg)
14 |
AP8150506 - DADO ESAGONALE FLANG.M6 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
15 |
AP8121728 - "DOUILLE EN ""T""" More informationQuantity required : 4 |
