Vehicle Exploded View - APRILIA RSV4 1100 Factory E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

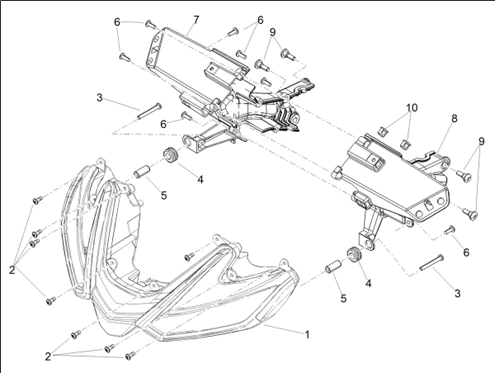

Feux - instruments : 08.01 ECLAIRAGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_08.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/5/4/img/171654.jpg)
1 |
2D000465 - HEADLIGHT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
2 |
AP8152270 - VIS More informationQuantity required : 8 |
||||||
3 |
898394 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
4 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
5 |
2B008278 - BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
6 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 8 |
||||||
|
7 |
2B007191 - RH FRONT LAMP SUPPORT More informationQuantity required : 1 |
||||||
|
8 |
2B007192 - LH FRONT LAMP SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
9 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201- More informationQuantity required : 4 |
||||||
|
10 |
2B009702 - BOUCHON More informationQuantity required : 1 |
