Vehicle Exploded View - APRILIA RSV4 1100 Factory E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

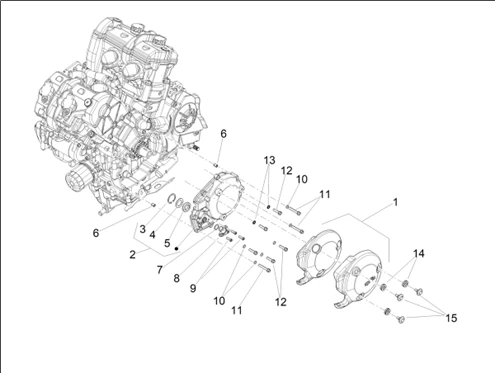

Moteur : 03.27 CARTER DE VOLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_03.27.png)
1 |
1A025733 - COUVERCLE INSONORISANT More informationQuantity required : 1 |
||||||
|
2 |
1A025733 - COUVERCLE INSONORISANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/1/img/63821.jpg)
3 |
006630 - CIRCLIPS S00663000 More informationQuantity required : 1 |
||||||
|
4 |
898269 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/2/5/img/42925.jpg)
5 |
GASKET RING 18X30X7 "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO/MOTO-GUZZI 750 V7, 950 V9 -898268- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/6/img/66356.jpg)
6 |
411209 - GOUJON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/2/img/69752.jpg)
7 |
O'RING GASKET "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO-V4, PORTER DIESEL -857176 More informationQuantity required : 1 |
||||||
|
8 |
85746200XNB - RACCORD More informationQuantity required : 1 |
||||||
|
9 |
857048 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
10 |
658830 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
11 |
874550 - VIS More informationQuantity required : 3 |
||||||
|
12 |
871094 - VIS More informationQuantity required : 5 |
||||||
|
13 |
2A000034 - RONDELLE PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/1/img/92911.jpg)
14 |
834040 - PASSE CABLES More informationQuantity required : 3 |
||||||
|
15 |
1A023234 - VIS SPECIALE More informationQuantity required : 3 |
