Vehicle Exploded View - APRILIA RSV4 1100 Factory E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

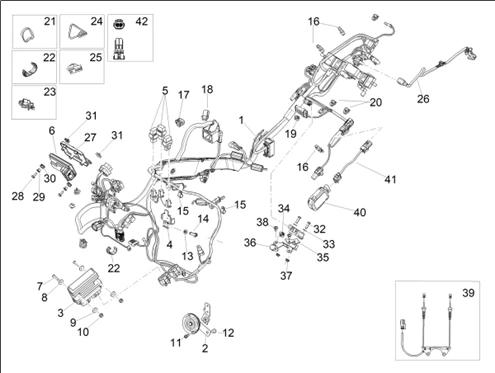

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_11.01.png)
1 |
2D000863 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
890979 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/1/img/158251.jpg)
3 |
1A012332 - REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
|
4 |
858916 - SUPPORT DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
5 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 1 |
||||||
|
6 |
2D000632 - RSV4 E5 SUSPENSIONS CONTROL UNIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
7 |
AP8152117 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
8 |
AP8150179 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
9 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/6/2/img/139062.jpg)
11 |
2B002416 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/0/6/5/img/127065.jpg)
12 |
2B002634 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
13 |
AP8121991 - DOUILLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
14 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
15 |
890721 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
|
16 |
AP8221310 - PASSE-CABLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
17 |
CM013202 - RESSORT More informationQuantity required : 1 |
||||||
|
18 |
AP9100765 - MOLLETTA RITEGNO CAVI More informationQuantity required : 1 |
||||||
|
19 |
890760 - SUPPORT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
20 |
CM013203 - RESSORT More informationQuantity required : 2 |
||||||
|
21 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
|
22 |
2B006134 - SUPPORT More informationQuantity required : 2 |
||||||
|
23 |
AP8221311 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
24 |
AP8221114 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
25 |
1D000129 - JOINT More informationQuantity required : 1 |
||||||
|
26 |
2D000867 - CABLAGE LUMIERE PLAQUE More informationQuantity required : 1 |
||||||
|
27 |
2B007836 - SUSPENSION CONTROL UNIT SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
28 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/0/img/71500.jpg)
29 |
AP8121929 - DOUILLE CLIGNOTANTS; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
30 |
AP8220186 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
31 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
32 |
AP8224470 - VIS More informationQuantity required : 2 |
||||||
|
33 |
GU95005306 - RONDELLE 6,4X13X1,5 More informationQuantity required : 2 |
||||||
|
34 |
890760 - SUPPORT More informationQuantity required : 1 |
||||||
|
35 |
2B007807 - LEVEL SENSOR CONNECTOR BRACKET More informationQuantity required : 1 |
||||||
|
36 |
2B002985 - PATTE More informationQuantity required : 1 |
||||||
|
37 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/4/7/img/132947.jpg)
38 |
GU98210612 - VIS More informationQuantity required : 2 |
||||||
|
39 |
2D000563 - HARNESS OHLINS FORK RSV4 More informationQuantity required : 1 |
||||||
|
40 |
2D000563 - HARNESS OHLINS FORK RSV4 More informationQuantity required : 1 |
||||||
|
41 |
2D000922 - PMP4 MULTIMEDIA PLATFORM More informationQuantity required : 1 |
||||||
|
42 |
2D000679 - BOUCHON POUR CONNECTEUR More informationQuantity required : 1 |
