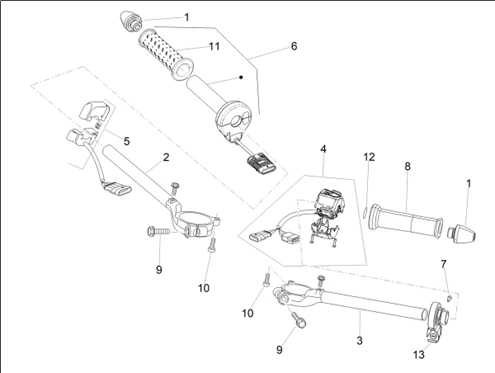

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_07.02.png)
1 |
2B012299 - MASSE ANTIVIBRATILE GUIDON More informationQuantity required : 2 |
||||||
|
2 |
2B012299 - MASSE ANTIVIBRATILE GUIDON More informationQuantity required : 1 |
||||||
|
3 |
2B0123075 - RH HALF HANDLEBAR More informationQuantity required : 1 |
||||||
|
4 |
2B012091 - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
5 |
2B012092 - DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/3/img/145823.jpg)
6 |
2D000095 - COMMANDE GAZ+POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
7 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/9/9/6/img/39996.jpg)
8 |
856027 - POIGNEE GC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/5/img/71905.jpg)
9 |
AP8150543 - VITE TCC M8 X 35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
10 |
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/1/4/8/img/212148.jpg)
11 |
REVETEMENT DE POIGNEE DROITE ORIGINE APRILIA/MOTO GUZZI COMMUN A LAGAMME -2B013053 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/3/img/97063.jpg)
12 |
AP8120190 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/5/4/4/img/39544.jpg)
13 |
SELECTOR CONTROL BRACKET "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO -852398- More informationQuantity required : 1 |
