Vehicle Exploded View - APRILIA RSV4 1100 Factory E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

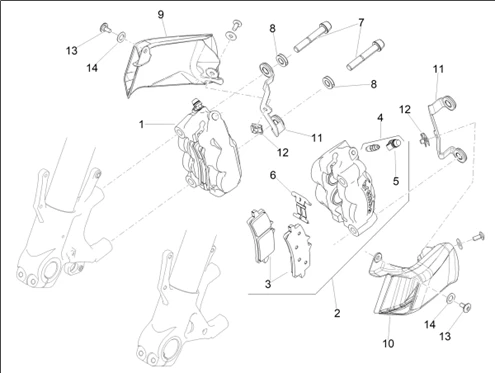

Système de freinage : 06.02 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_06.02.png)
1 |
AP8113230 - CAPUCHON RENIFLARD (20 PCS) More informationQuantity required : 1 |
||||||
|
2 |
2B012883 - ÉTRIER DE FREIN AVANT DROIT More informationQuantity required : 1 |
||||||
|
3 |
2B012884 - ÉTRIER DE FREIN AVANT GAUCHE More informationQuantity required : 2 |
||||||
|
4 |
AP8133824 - SPURGO ARIA More informationQuantity required : 2 |
||||||
|
5 |
AP8113230 - CAPUCHON RENIFLARD (20 PCS) More informationQuantity required : 2 |
||||||
|
6 |
AP8113230 - CAPUCHON RENIFLARD (20 PCS) More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/4/8/img/156448.jpg)
7 |
2B005564 - VIS TCC More informationQuantity required : 4 |
||||||
|
8 |
2B003247 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
9 |
2B005507 - PRISE D'AIR More informationQuantity required : 1 |
||||||
|
10 |
2B005506 - PRISE D'AIR More informationQuantity required : 1 |
||||||
|
11 |
2B005526 - SUPPORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
12 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
13 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
14 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 2 |
