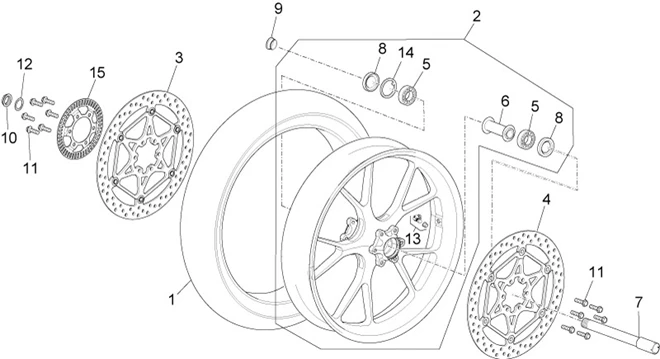

Roues : 05.01 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_05.01.png)
1 |
2B006862 - PNEU AVANT (PIRELLI) More informationQuantity required : 1 |
||||||
|
2 |
2B011608 - ROUE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/6/0/img/145560.jpg)
3 |
FRONT BRAKE DISC - RIGHT (Ø330 MM) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4 -2B001135 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/6/1/img/145561.jpg)
4 |
FRONT BRAKE DISC - LEFT (Ø330 MM) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4 -2B001136 More informationQuantity required : 1 |
||||||
|
5 |
AP8110094 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/8/6/img/71586.jpg)
6 |
SPACER- FOR FRONT WHEEL - INNER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, TUONO -AP8125843- More informationQuantity required : 1 |
||||||
|
7 |
2B008946 - AXE DE ROUE AV More informationQuantity required : 1 |
||||||
|
8 |
AP8125841 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/5/img/71575.jpg)
9 |
SPACER- FOR FRONT WHEEL-OUTER RIGHT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8125728- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
10 |
AP8152335 - ECROU DE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
11 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
12 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/7/img/71237.jpg)
13 |
AP8104728 - VALVOLA TUBELESS More informationQuantity required : 1 |
||||||
|
14 |
AP8125842 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/9/1/img/145591.jpg)
15 |
PHONIC WHEEL - FRONT ABS "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4 -2B003169 More informationQuantity required : 1 |
