Vehicle Exploded View - APRILIA RSV4 1100 Factory E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

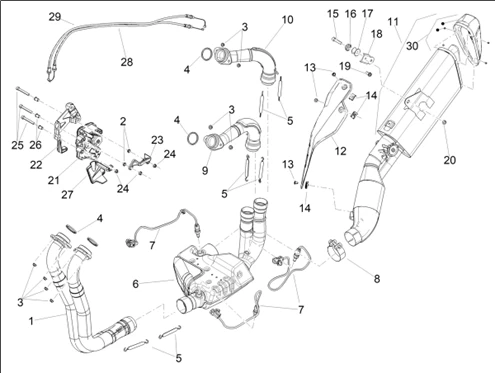

Moteur : 03.33 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_03.33.png)
1 |
2B012374 - FRONT PRINCIPAL EXHAUST PIPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
2 |
AP8121811 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
3 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/2/8/5/img/214285.jpg)
4 |
JOINT ECHAPPEMENT EN SORTIE DE CULASSE ORIGINE PIAGGIO APRILIA 1000-1100 RSV-4 2011>, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9 -2B012220- More informationQuantity required : 4 |
||||||
|
5 |
AP8121170 - RESSORT More informationQuantity required : 6 |
||||||
|
6 |
2B012375 - COLLECTEUR ECHAP.CENTRAL More informationQuantity required : 1 |
||||||
|
7 |
1A024934 - SONDE LAMDA More informationQuantity required : 3 |
||||||
|
8 |
976521 - FASCETTA STRIGITUBO PER SILENZIATORE More informationQuantity required : 1 |
||||||
|
9 |
2B012376 - TUYAU ECHAPPEMENT ARR.D. More informationQuantity required : 1 |
||||||
|
10 |
2B012377 - TUYAU ECHAPPEMENT ARR.G. More informationQuantity required : 1 |
||||||
|
11 |
2B012378 - SILENCIEUX D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
12 |
2B0126564 - PROTECT. SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/3/9/img/42939.jpg)
13 |
898385 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
15 |
AP8150236 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/3/img/46743.jpg)
16 |
AP8121199 - BUSSOLA FISS.SILENZIATORI More informationQuantity required : 1 |
||||||
|
17 |
2L002131 - DOUILLE ENTRETOISE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/3/7/img/156437.jpg)
18 |
2L002133 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
20 |
AP8150431 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
|
21 |
2D000263 - ACTIONNEUR More informationQuantity required : 1 |
||||||
|
22 |
2B003443 - PATTE More informationQuantity required : 1 |
||||||
|
23 |
2B003577 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
24 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
25 |
AP8150403 - VIS More informationQuantity required : 3 |
||||||
|
26 |
GU91120607 - BAGUE 6,4X8,4X10,5 More informationQuantity required : 3 |
||||||
|
27 |
2B008937 - WIRING PROTECTION More informationQuantity required : 1 |
||||||
|
28 |
2B007127 - HEXAHUST VALVE OPENING CABLE More informationQuantity required : 1 |
||||||
|
29 |
2B007128 - HEXAHUST VALVE CLOSING CABLE More informationQuantity required : 1 |
||||||
|
30 |
2B013255 - KIT SILENCER CAP FOR SPARE PARTS More informationQuantity required : 1 |
