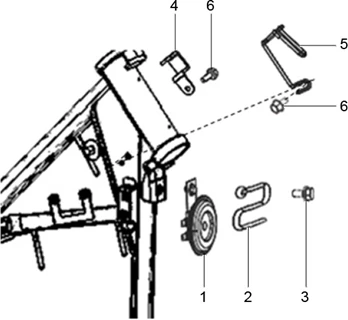

Cadre : 01.13 TROMPETTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/582/STX_150_2014_01.13.PNG)
Search
1 |
Klaxon |
||||||
|
2 |
Support |
||||||
|
3 |
BOULON M8×16 |
||||||
|
4 |
Pivot |
||||||
|
5 |
Support |
||||||
|
6 |
BOULON M6×16 |
