Vehicle Exploded View - APRILIA STX 150 2014 APRILIA

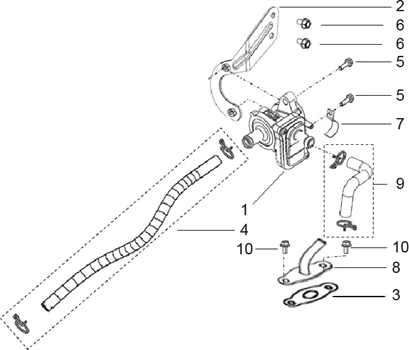

Cadre : 01.24 SOUPAPE DE RÉGULATION D'AIR SECONDAIRE
soupape de régulation d'air secondaire
Search
Soupape

1
P2R reference P2R reference
Maker reference Maker reference RB000101

Soupape

Patte

2
P2R reference P2R reference
Maker reference Maker reference RB000102

Patte

Joint

3
P2R reference P2R reference
Maker reference Maker reference RB000504

Joint

Tube de jonction

4
P2R reference P2R reference
Maker reference Maker reference RB000104

Tube de jonction

BOULON M6×20

5
P2R reference P2R reference
Maker reference Maker reference RB000638

BOULON M6×20

BOULON M6×12

6
P2R reference P2R reference
Maker reference Maker reference RB000634

BOULON M6×12

Clip

7
P2R reference P2R reference
Maker reference Maker reference 2R000137

Clip

Tuyau

8
P2R reference P2R reference
Maker reference Maker reference RB000106

Tuyau

Tuyau d’échappement (f5×f9×350)

9
P2R reference P2R reference
Maker reference Maker reference RB000107

Tuyau d’échappement (f5×f9×350)

BOULON M6×16

10
P2R reference P2R reference
Maker reference Maker reference RB000671

BOULON M6×16
