Vehicle Exploded View - APRILIA STX 150 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

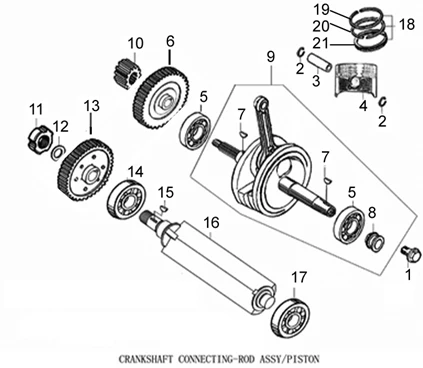

Moteur : 02.07 ENS. BIELLE DE VILEBREQUIN/PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/582/STX_150_2014_02.07.PNG)
1 |
BOULON M10×36 |
||||||
|
2 |
Bague élastique |
||||||
|
3 |
Pivot |
||||||
|
4 |
Piston |
||||||
|
5 |
Roulement |
||||||
|
6 |
Engrenage |
||||||
|
7 |
Clavette |
||||||
|
8 |
Couronne |
||||||
|
9 |
Arbre moteur cpl. |
||||||
|
10 |
Engr. |
||||||
|
11 |
Bague |
||||||
|
12 |
Rondelle |
||||||
|
13 |
Couvercle |
||||||
|
14 |
Roulement |
||||||
|
15 |
Clavette |
||||||
|
16 |
Arbre masse antivibratile |
||||||
|
17 |
Roulement |
||||||
|
18 |
Bague |
||||||
|
19 |
Circlips |
||||||
|
20 |
Circlips |
||||||
|
21 |
Bague |
