Vehicle Exploded View - APRILIA STX 150 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

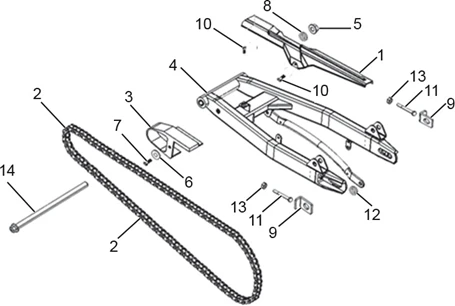

Cadre : 01.15 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/582/STX_150_2014_01.15.PNG)
1 |
Carter chaîne |
||||||
|
2 |
Chaîne |
||||||
|
3 |
COUVRE CHAONES |
||||||
|
4 |
Fourche ar. |
||||||
|
5 |
Ecrou |
||||||
|
6 |
RONDELLE |
||||||
|
7 |
BOULON M6×16 |
||||||
|
8 |
RONDELLE |
||||||
|
9 |
Doigt |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
||||||
|
11 |
BOULON |
||||||
|
12 |
Pare-chocs |
||||||
|
13 |
Ecrou M8 |
||||||
|
14 |
PIVOT |
