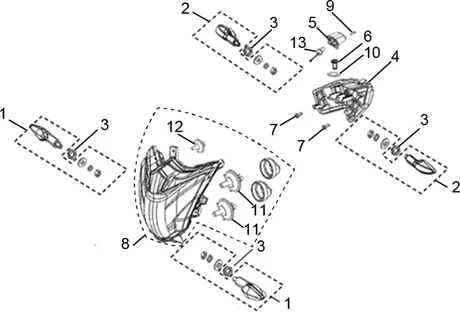

Vehicle Exploded View - APRILIA STX 150 2014 APRILIA

Cadre : 01.31 FEUX
feux
Search
Clignotant AV

1
P2R reference P2R reference
Maker reference Maker reference RB000471

Clignotant AV

Clignotant arrière

2
P2R reference P2R reference
Maker reference Maker reference RB000473

Clignotant arrière

Entretoise

3
P2R reference P2R reference
Maker reference Maker reference RB000474

Entretoise

Feu arrière

4
P2R reference P2R reference
Maker reference Maker reference RB000470

Feu arrière

Lumiere plaque immatr.

5
P2R reference P2R reference
Maker reference Maker reference RB000475

Lumiere plaque immatr.

BOULON M6×16

6
P2R reference P2R reference
Maker reference Maker reference RB000637

BOULON M6×16

Vis

7
P2R reference P2R reference
Maker reference Maker reference RB000579

Vis

Phare avant

8
P2R reference P2R reference
Maker reference Maker reference RB000460

Phare avant

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

9
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

More information

Quantity required : 1

Joint

10
P2R reference P2R reference
Maker reference Maker reference RB000371

Joint

LAMPE FEU AR

11
P2R reference P2R reference
Maker reference Maker reference 2R000188

LAMPE FEU AR

LAMPE FEU AR

12
P2R reference P2R reference
Maker reference Maker reference RB000472

LAMPE FEU AR

LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225-

13
P2R reference P2R reference 139408
Maker reference Maker reference 2920225

LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225-

More information

Quantity required : 1
