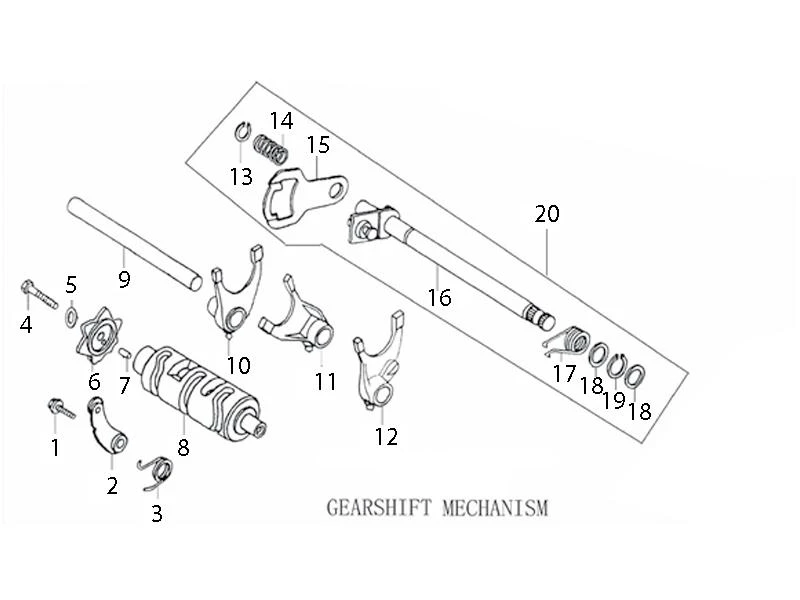

Moteur : 02.09 DISPOSITIF DE COMMANDEDE BOITE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/582/STX_150_2014_02.09.PNG)
1 |
BOULON M6×20 |
||||||
|
2 |
Plaque |
||||||
|
3 |
RESSORT |
||||||
|
4 |
BOULON M6×110" |
||||||
|
5 |
RB000590 - WASHER More informationQuantity required : 1 |
||||||
|
6 |
Plaque |
||||||
|
7 |
Pivot |
||||||
|
8 |
Tambour |
||||||
|
9 |
Arbre |
||||||
|
10 |
FOURCHE D. |
||||||
|
11 |
FOURCHE |
||||||
|
12 |
FOURCHE G. |
||||||
|
13 |
Pivot |
||||||
|
14 |
RESSORT |
||||||
|
15 |
Plaque |
||||||
|
16 |
Groupe arbre |
||||||
|
17 |
RESSORT |
||||||
|
18 |
Rondelle |
||||||
|
19 |
Bague |
||||||
|
20 |
Levier |
