Vehicle Exploded View - APRILIA STX 150 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

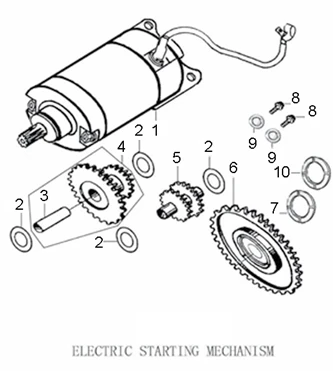

Moteur : 02.11 MECANISME DE DEMARRAGE ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/582/STX_150_2014_02.11.PNG)
Search
1 |
Démarreur |
||||||
|
2 |
Rondelle |
||||||
|
3 |
AXE |
||||||
|
4 |
ENGR. |
||||||
|
5 |
ENGR. |
||||||
|
6 |
Plaque |
||||||
|
7 |
Rondelle |
||||||
|
8 |
BOULON M6×28 |
||||||
|
9 |
RONDELLE |
||||||
|
10 |
Rondelle |
