Vehicle Exploded View - APRILIA STX 150 2014 APRILIA

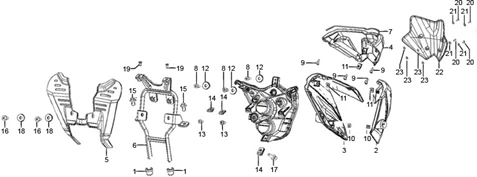

Cadre : 01.25 COUVERCLE DE FEU AVANT
couvercle de feu avant
Search
Circlips

1
P2R reference P2R reference
Maker reference Maker reference RB000469

Circlips

Couvercle D.

2
P2R reference P2R reference
Maker reference Maker reference RB000465

Couvercle D.

Couvercle drt.

2
P2R reference P2R reference
Maker reference Maker reference RB000466

Couvercle drt.

Couvercle drt.

2
P2R reference P2R reference
Maker reference Maker reference RB000467

Couvercle drt.

Couvercle G.

3
P2R reference P2R reference
Maker reference Maker reference RB000462

Couvercle G.

Couvercle G.

3
P2R reference P2R reference
Maker reference Maker reference RB000463

Couvercle G.

Couvercle G.

3
P2R reference P2R reference
Maker reference Maker reference RB000464

Couvercle G.

CACHE ARR.

4
P2R reference P2R reference
Maker reference Maker reference RB000385

CACHE ARR.

Protection

5
P2R reference P2R reference
Maker reference Maker reference RB000376

Protection

Support

6
P2R reference P2R reference
Maker reference Maker reference RB000468

Support

GARNITURE

7
P2R reference P2R reference
Maker reference Maker reference RB000374

GARNITURE

BOULON M6×16

8
P2R reference P2R reference
Maker reference Maker reference RB000608

BOULON M6×16

SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

9
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

More information

Quantity required : 4

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

10
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

Ecrou

11
P2R reference P2R reference
Maker reference Maker reference RB000531

Ecrou

RONDELLE

12
P2R reference P2R reference
Maker reference Maker reference RB000592

RONDELLE

Vis

13
P2R reference P2R reference
Maker reference Maker reference RB000579

Vis

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

14
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 3

BOULON M6×12

15
P2R reference P2R reference
Maker reference Maker reference RB000634

BOULON M6×12

Vis

16
P2R reference P2R reference
Maker reference Maker reference RB000607

Vis

BOULON M6×16

17
P2R reference P2R reference
Maker reference Maker reference RB000637

BOULON M6×16

RONDELLA PIANA Ø6

18
P2R reference P2R reference
Maker reference Maker reference RB000684

RONDELLA PIANA Ø6

Vis

19
P2R reference P2R reference
Maker reference Maker reference RB000577

Vis

BRAKE DISC SCREW (6x20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152-

20
P2R reference P2R reference 68436
Maker reference Maker reference 667152

BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152-

More information

Quantity required : 4

006966 - RONDELLE S00696600

21
P2R reference P2R reference 63838
Maker reference Maker reference 0069665

006966 - RONDELLE S00696600

More information

Quantity required : 4

Carène

22
P2R reference P2R reference
Maker reference Maker reference RB000387

Carène

RONDELLE PLATE

23
P2R reference P2R reference
Maker reference Maker reference RB000370

RONDELLE PLATE
