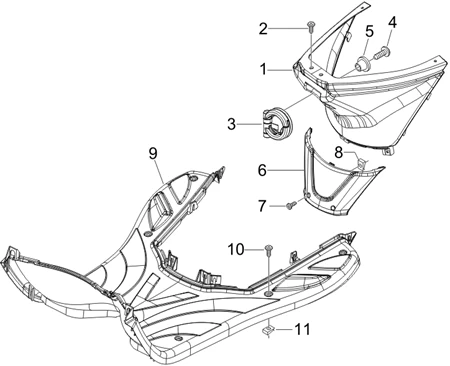

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/62/Fly_125_4T_E3_2007-2008_02.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/0/4/img/67704.jpg)
1 |
CARENAGE SOUS SELLE ORIGINE PIAGGIO 50-125 FLY 2005>2010 -621988000D Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
2 |
VIS DE CARENAGE (3X18) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -258249 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/2/img/67122.jpg)
3 |
CROCHET PORTE SAC ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -575819 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
4 |
VIS AUTOTARAUDEUSE (4,2X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -259349 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
5 |
DOUILLE EN T (D5) MOLETEE CENTRAGE BOITE A AIR ORIGINE PIAGGIO COMMUN A LA GAMME -830056 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/0/6/img/67706.jpg)
6 |
CACHE/TRAPPE DE BOUGIE ORIGINE PIAGGIO 50-125 FLY 2006>2010 -621989000D Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
VIS AUTOTARAUDEUSE (4,2X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -259349 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
8 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 2 |
||||||
9 |
MARCHE PIED ORIGINE PIAGGIO 50-125 FLY 2007> GRIS -621985000D- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
10 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 6 |
