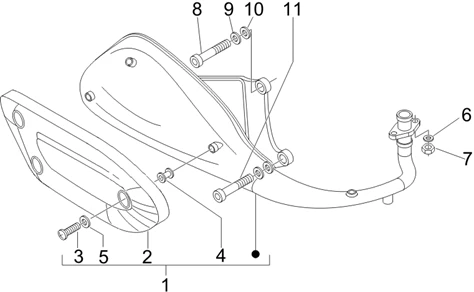

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/62/Fly_125_4T_E3_2007-2008_01.42.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/3/9/img/70739.jpg)
1 |
POT ECHAPPEMENT ORIGINE PIAGGIO 125 FLY /APRILIA 125 MOJITO -880747 Plus d'informationsQuantité requise : 1 |
||||||
2 |
843841 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
3 |
VIS BTR TETE BOMBEE (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -651014 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
4 |
PASSE CABLE (8X10X16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -487665 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
5 |
RONDELLE PLATE (5X16) TOLE ECHAPPEMENT ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -827526 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
6 |
RONDELLE (8,2X16X2,2) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -834187 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
7 |
ECROU ECHAPPEMENT SUR CULASSE MAXISCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC -436947 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
844191 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
9 |
RONDELLE PLATE (8,2X20X2,5) ORIGINE PIAGGIO COMMUN A LA GAMME -013861 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
825643 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/0/img/69320.jpg)
11 |
VIS BTR (8X60) ORIGINE PIAGGIO COMMUN A LA GAMME -844470 Plus d'informationsQuantité requise : 1 |
