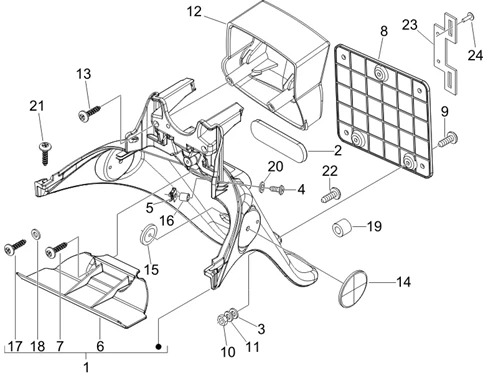

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/62/Fly_125_4T_E3_2007-2008_02.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/3/7/img/84837.jpg)
1 |
BAVETTE ARRIERE ORIGINE PIAGGIO 50-125 FLY 2006>2007 -623503000D Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/3/img/67253.jpg)
2 |
CATADIOPTRE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -58233R5 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
3 |
RONDELLE (4,2X7,6X0,9) ORIGINE PIAGGIO COMMUN A LA GAMME -016404 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
4 |
VIS DE CARENAGE (3X18) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -258249 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/2/5/img/67725.jpg)
6 |
PROTECTION INTERNE DE BAVETTE ARRIERE ORIGINE PIAGGIO 50-125 FLY 2006>2011 -622268000C- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
7 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
8 |
PORTE PLAQUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -584884 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
9 |
VIS CRUCIFORME (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -015996 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
10 |
ECROU (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -020104 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
11 |
RONDELLE PLATE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -013763 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/8/4/img/68184.jpg)
14 |
CATADIOPTRE ORIGINE DERBI 125 BOULEVARD 2008>2012 -651538 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/6/img/65796.jpg)
15 |
AGRAPHE ORIGINE PIAGGIO COMMUN A LA GAMME -180859 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/5/2/img/67752.jpg)
16 |
ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -624085 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
17 |
VIS DE CARENAGE (3,5X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -297498 Plus d'informationsQuantité requise : 3 |
||||||
|
18 |
RONDELLE PLATE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -013763 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
20 |
RONDELLE PLATE (6,2X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -013950 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
21 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
22 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/1/img/67321.jpg)
23 |
RALLONGE POUR PORTEPLAQUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -584877- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
24 |
VIS AUTOTARAUDEUSE (4X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -268596 Plus d'informationsQuantité requise : 4 |
||||||
|
25 |
CATADIOPTRE ORIGINE DERBI 125 BOULEVARD 2008>2012 -651538 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
26 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
27 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
28 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020106 Plus d'informationsQuantité requise : 2 |
