Eclatés de véhicule - PIAGGIO FLY 125 4T E3 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

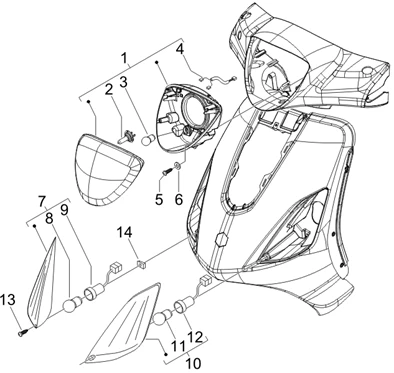

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/62/Fly_125_4T_E3_2007-2008_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/1/img/67231.jpg)
1 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE PIAGGIO 50-125 FLY 2005>2012, 50-125 LIBERTY 2006>2012 -58178R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
2 |
AMPOULE/LAMPE 12V 35/35W S2 ORIGINE PIAGGIO COMMUN A LA GAMME -219528 Plus d'informationsQuantité requise : 1 |
||||||
3 |
638791 - PORTE AMPOULE * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/2/img/67792.jpg)
4 |
PORTE AMPOULE/FAISCEAU CABLE ORIGINE PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, 125-250-300 VESPA GTS, 250-300-400 BEVERLY 2012< -638563 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE PIAGGIO 50-125 FLY 2005>2012, 50-125 LIBERTY 2006>2012 -58178R Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
VIS CRUCIFORME (5X17) ORIGINE PIAGGIO COMMUN A LA GAMME -834065 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
6 |
RONDELLE ELASTIQUE (5,3X10) ORIGINE PIAGGIO COMMUN A LA GAMME -006965 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/4/img/67794.jpg)
7 |
CLIGNOTANT AVANT DROIT ORIGINE PIAGGIO 50-125 FLY 2006> -638577 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
8 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE ORIGINE PIAGGIO COMMUN A LA GAMME -584332 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/9/img/67809.jpg)
9 |
PORTE AMPOULE CLIGNOTANT ORIGINE PIAGGIO 50-125 FLY -638784 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/0/img/67800.jpg)
10 |
CLIGNOTANT AVANT GAUCHE ORIGINE PIAGGIO 50-125 FLY 2006> -638655 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE ORIGINE PIAGGIO COMMUN A LA GAMME -584332 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
PORTE AMPOULE CLIGNOTANT ORIGINE PIAGGIO 50-125 FLY -638784 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/0/img/63850.jpg)
13 |
VIS PARKER (3.5X13) CRUCIFORME DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -008372 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
14 |
ECROU TOLE (3.5 PARKER) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM017403 Plus d'informationsQuantité requise : 2 |
