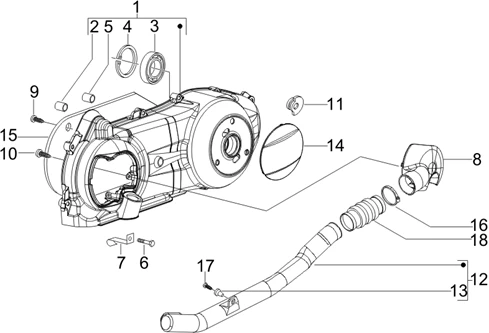

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/62/Fly_125_4T_E3_2007-2008_01.15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/8/7/img/69187.jpg)
1 |
COUVERCLE DE TRANSMISSION ORIGINE PIAGGIO 125 MP3, BEVERLY, X7, X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC 2013< -8413805 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
2 |
BAGUE/DOUILLE BRONZE 8X12X8 ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -431860 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
3 |
ROULEMENT (15X35X11) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER 125-250-300 -4789853 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
4 |
CIRCLIPS (D=38) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -006635 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
5 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
6 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792 Plus d'informationsQuantité requise : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/8/img/69338.jpg)
7 |
COLLIER DE FIXATION PASSE CABLE ORIGINE PIAGGIO COMMUN A LA GAMME -844964 Plus d'informationsQuantité requise : 1 |
||||||
8 |
843264 - COUVERCLE RAFFR. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
9 |
VIS CRUCIFORME (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -430264 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
10 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/7/8/img/70378.jpg)
11 |
TAMPON/INSERT ARRET FIXATION COUVERCLE TRANMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -871458 Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
622267 - TUYAU HUILE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
13 |
AGRAPHE/CHEVILLE A EXPANSION ORIGINE PIAGGIO COMMUN A TOUTE LE GAMME -199190 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/5/4/img/139454.jpg)
14 |
COUVERCLE ROND DE CARTER DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC -CM155110 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
DIAPHRAGME POUR AIR CHAUD 125CC -873682- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
16 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
17 |
VIS AUTOTARAUDEUSE (4,2X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -259349 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/3/img/66303.jpg)
18 |
SOUFFLET/MANCHON REFROIDISSEMENT CARTER ORIGINE PIAGGIO 50-125 FLY, VESPA LX, VESPA-S -298548 Plus d'informationsQuantité requise : 1 |
