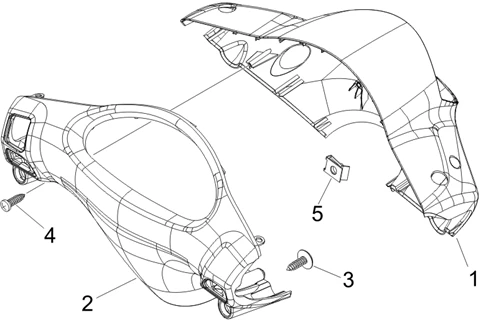

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/62/Fly_125_4T_E3_2007-2008_03.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/9/2/img/68192.jpg)
1 |
COUVRE GUIDON AVANT ORIGINE PIAGGIO 50-125 FLY 2006>2011 NOIR 94 -6527410090 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/3/8/1/img/87381.jpg)
1 |
COUVRE GUIDON AVANT ORIGINE PIAGGIO 50-125 FLY 2006>2011 BLEU 280 -65274100A3 Plus d'informationsQuantité requise : 1 |
||||||
1 |
COUVRE GUIDON ORIGINE PIAGGIO 50-125 FLY 2006>2011 GRIS 738/A -65274100F2- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/9/5/img/68195.jpg)
1 |
COUVRE GUIDON AVANT ORIGINE PIAGGIO 50-125 FLY 2006>2011 ROUGE 894 -65274100R7 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/9/0/img/68190.jpg)
1 |
COUVRE GUIDON AVANT ORIGINE PIAGGIO 50-125 FLY 2006>2011 BRUT A PEINDRE -652741 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/9/7/img/68197.jpg)
2 |
CACHE DIRECTION INTERIEUR ORIGINE PIAGGIO 50-125 FLY 2006> NOIR -652742000C Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
3 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
4 |
VIS AUTOTARAUDEUSE (4X35) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -265636 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
5 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017409 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
6 |
VIS PARKER (4,2X19) CRUCIFORME DE CLIGNOTANT OU CARENAGE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -008457 Plus d'informationsQuantité requise : 1 |
