Vehicle Exploded View - APRILIA QUASAR 50 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

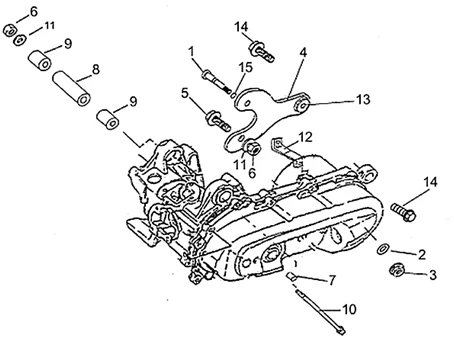

Chassis : 28.13 SUPPORT MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/307/Quasar_50_2003_28.13.PNG)
1 |
Pivot |
||||||
|
2 |
Rondelle plate |
||||||
|
3 |
AP8910375 - DADO M8 More informationQuantity required : 1 |
||||||
|
4 |
Support moteur |
||||||
|
5 |
Vis bride |
||||||
|
6 |
DADO M12 |
||||||
|
7 |
Douille |
||||||
|
8 |
Engine support |
||||||
|
9 |
Silentbloc |
||||||
|
10 |
Vis bride |
||||||
|
11 |
Rondelle plate |
||||||
|
12 |
Plaque support |
||||||
|
13 |
Caoutchouc |
||||||
|
14 |
Vis bride |
||||||
|
15 |
Joint torique |
