Vehicle Exploded View - APRILIA QUASAR 50 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

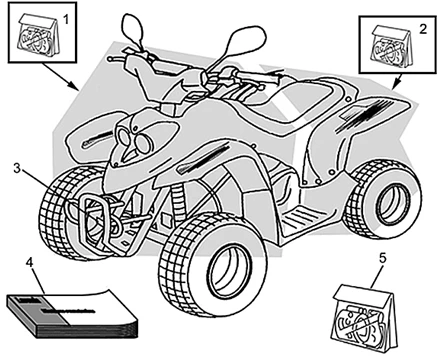

Chassis : 28.31 DÉCALCO ET MANUEL D’INSTR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/307/Quasar_50_2003_28.31.PNG)
Search
1 |
Décalco série AV |
||||||
|
1 |
Décalco série AV |
||||||
|
2 |
Décalco série AR |
||||||
|
2 |
Décalco série AR |
||||||
|
3 |
Plaquette constructeur |
||||||
|
4 |
Livret d’util.et entret. |
||||||
|
5 |
Décalco série |
||||||
|
5 |
Décalco série |
