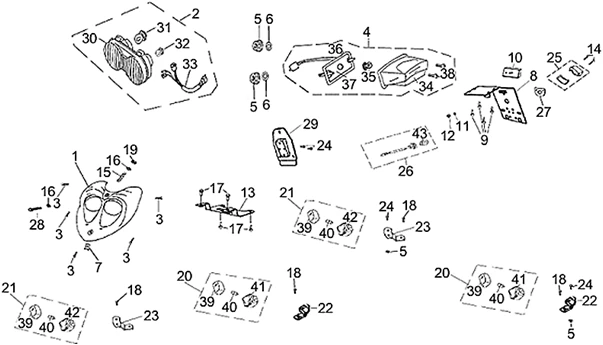

Vehicle Exploded View - APRILIA QUASAR 50 2003 APRILIA

Chassis : 28.28 FEUX
Feux
Search
Cache

1
P2R reference P2R reference
Maker reference Maker reference AP8910295

Cache

Phare avant

2
P2R reference P2R reference
Maker reference Maker reference AP8910187

Phare avant

AP8910363 - VITE AUTOF.M4X16

3
P2R reference P2R reference 61592
Maker reference Maker reference AP8910363

AP8910363 - VITE AUTOF.M4X16

More information

Quantity required : 6

AP8910189 - FANALE POST.

4
P2R reference P2R reference 61564
Maker reference Maker reference AP8910189

AP8910189 - FANALE POST.

More information

Quantity required : 1

DADO FLANG.M6

5
P2R reference P2R reference
Maker reference Maker reference AP8910372

DADO FLANG.M6

Rondelle plate

6
P2R reference P2R reference
Maker reference Maker reference AP8910383

Rondelle plate

Plaquette

7
P2R reference P2R reference
Maker reference Maker reference AP8910309

Plaquette

Support plaque

8
P2R reference P2R reference
Maker reference Maker reference AP8910575

Support plaque

Vis bride

9
P2R reference P2R reference
Maker reference Maker reference AP8910426

Vis bride

AP8910518 - CATADIOTTRO

10
P2R reference P2R reference 61611
Maker reference Maker reference AP8910518

AP8910518 - CATADIOTTRO

More information

Quantity required : 1

AP8910560 - ROSETTA PIANA

11
P2R reference P2R reference 61620
Maker reference Maker reference AP8910560

AP8910560 - ROSETTA PIANA

More information

Quantity required : 1

DADO FLANG.M5

12
P2R reference P2R reference
Maker reference Maker reference AP8910371

DADO FLANG.M5

Support phare AR

13
P2R reference P2R reference
Maker reference Maker reference AP8910571

Support phare AR

Vis taraud

14
P2R reference P2R reference
Maker reference Maker reference AP8910581

Vis taraud

Ressort

15
P2R reference P2R reference
Maker reference Maker reference AP8910550

Ressort

Rondelle plate

16
P2R reference P2R reference
Maker reference Maker reference AP8910561

Rondelle plate

AP8910354 - VITE AUTOF.M5X12

17
P2R reference P2R reference 61591
Maker reference Maker reference AP8910354

AP8910354 - VITE AUTOF.M5X12

More information

Quantity required : 6

Vis bride

18
P2R reference P2R reference
Maker reference Maker reference AP8910587

Vis bride

Écrou

19
P2R reference P2R reference
Maker reference Maker reference AP8910528

Écrou

AP8910533 - INDICATORE DIREZIONE SX

20
P2R reference P2R reference 61614
Maker reference Maker reference AP8910533

AP8910533 - INDICATORE DIREZIONE SX

More information

Quantity required : 2

AP8910532 - INDICATORE DIREZIONE DX

21
P2R reference P2R reference 61613
Maker reference Maker reference AP8910532

AP8910532 - INDICATORE DIREZIONE DX

More information

Quantity required : 2

AP8910573 - SUPPORTO INDICATORE DIR.SX

22
P2R reference P2R reference 61622
Maker reference Maker reference AP8910573

AP8910573 - SUPPORTO INDICATORE DIR.SX

More information

Quantity required : 2

AP8910572 - SUPPORTO INDICATORE DIR.DX

23
P2R reference P2R reference 61621
Maker reference Maker reference AP8910572

AP8910572 - SUPPORTO INDICATORE DIR.DX

More information

Quantity required : 2

AP8910462 - VITE AUTOF. M6X16

24
P2R reference P2R reference 61604
Maker reference Maker reference AP8910462

AP8910462 - VITE AUTOF. M6X16

More information

Quantity required : 2

AP8910579 - VETRO LUCE TARGA

25
P2R reference P2R reference 61624
Maker reference Maker reference AP8910579

AP8910579 - VETRO LUCE TARGA

More information

Quantity required : 1

AP8910517 - CABLAGGIO LUCE TARGA

26
P2R reference P2R reference 61610
Maker reference Maker reference AP8910517

AP8910517 - CABLAGGIO LUCE TARGA

More information

Quantity required : 1

Joint

27
P2R reference P2R reference
Maker reference Maker reference AP8910531

Joint

Vis taraud

28
P2R reference P2R reference
Maker reference Maker reference AP8910582

Vis taraud

Porte-plaque

29
P2R reference P2R reference
Maker reference Maker reference AP8910557

Porte-plaque

Glace feu AV

30
P2R reference P2R reference
Maker reference Maker reference AP8910188

Glace feu AV

Lampe (ou Ampoule)

31
P2R reference P2R reference
Maker reference Maker reference AP8910191

Lampe (ou Ampoule)

Lampe (ou Ampoule)

32
P2R reference P2R reference
Maker reference Maker reference AP8910543

Lampe (ou Ampoule)

Câblage feu AV

33
P2R reference P2R reference
Maker reference Maker reference AP8910516

Câblage feu AV

Glace phare AR

34
P2R reference P2R reference
Maker reference Maker reference AP8910577

Glace phare AR

Lampe (ou Ampoule)

35
P2R reference P2R reference
Maker reference Maker reference AP8910544

Lampe (ou Ampoule)

AP8910530 - GUARNIZIONE FANALE POST.

36
P2R reference P2R reference 61612
Maker reference Maker reference AP8910530

AP8910530 - GUARNIZIONE FANALE POST.

More information

Quantity required : 1

AP8910554 - PORTALAMPADA

37
P2R reference P2R reference 61617
Maker reference Maker reference AP8910554

AP8910554 - PORTALAMPADA

More information

Quantity required : 1

Vis taraud

38
P2R reference P2R reference
Maker reference Maker reference AP8910584

Vis taraud

AP8910578 - VETRO INDICATORE DIR. SX

39
P2R reference P2R reference 61623
Maker reference Maker reference AP8910578

AP8910578 - VETRO INDICATORE DIR. SX

More information

Quantity required : 4

Lampe (ou Ampoule)

40
P2R reference P2R reference
Maker reference Maker reference AP8910541

Lampe (ou Ampoule)

AP8910556 - INDICATORE DIRE.ANT.SX

41
P2R reference P2R reference 61619
Maker reference Maker reference AP8910556

AP8910556 - INDICATORE DIRE.ANT.SX

More information

Quantity required : 2

AP8910555 - INDICATORE DIRE.ANT.DX

42
P2R reference P2R reference 61618
Maker reference Maker reference AP8910555

AP8910555 - INDICATORE DIRE.ANT.DX

More information

Quantity required : 2

Lampe (ou Ampoule)

43
P2R reference P2R reference
Maker reference Maker reference AP8910542

Lampe (ou Ampoule)
