Vehicle Exploded View - APRILIA QUASAR 50 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

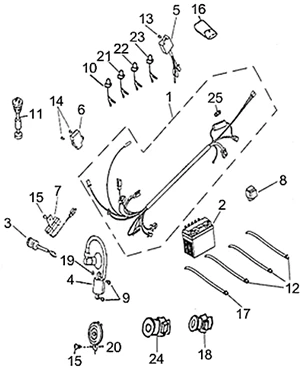

Chassis : 28.30 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/307/Quasar_50_2003_28.30.PNG)
1 |
Câblage principal |
||||||
|
1 |
AP8910186 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
|
2 |
Batterie |
||||||
|
3 |
Bloc démarreur |
||||||
|
4 |
Bobine |
||||||
|
5 |
Unité CDI |
||||||
|
6 |
Redresseur+Régulat.de tension |
||||||
|
7 |
AP8910197 - RESISTENZA More informationQuantity required : 1 |
||||||
|
8 |
AP8910196 - RELE' More informationQuantity required : 1 |
||||||
|
9 |
Vis bride |
||||||
|
10 |
Indicateur réserve huile |
||||||
|
11 |
Détecteur niveau |
||||||
|
12 |
AP8910324 - FASCETTA ALT-200M-B More informationQuantity required : 3 |
||||||
|
13 |
Vis bride |
||||||
|
14 |
Vis taraud |
||||||
|
15 |
Vis bride |
||||||
|
16 |
Trousse à outils |
||||||
|
17 |
AP8910328 - FASCETTA LR-220AH More informationQuantity required : 1 |
||||||
|
18 |
Clignotement |
||||||
|
19 |
Rondelle évent. |
||||||
|
20 |
Klaxon |
||||||
|
21 |
Témoin feu de route |
||||||
|
22 |
Lampe faisceau de hight |
||||||
|
23 |
Lampe hazzard |
||||||
|
24 |
Clignotement |
||||||
|
25 |
Fusible |
