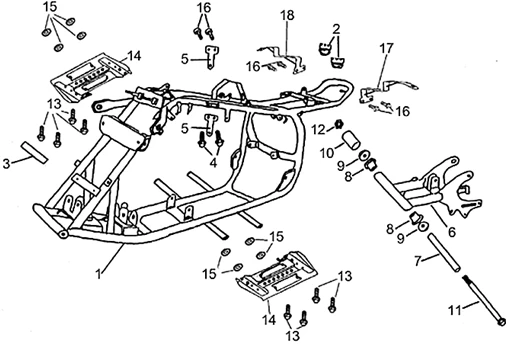

Chassis : 28.14 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/307/Quasar_50_2003_28.14.PNG)
1 |
Chassis |
||||||
|
1 |
Chassis |
||||||
|
2 |
AP8910297 - GOMMINO SELLA 37X13X23 More informationQuantity required : 2 |
||||||
|
3 |
Plaque |
||||||
|
4 |
RIVETTO 3X8 |
||||||
|
5 |
Support moteur |
||||||
|
6 |
Fourche arriere |
||||||
|
7 |
Entretoise |
||||||
|
8 |
AP8910264 - ANELLO DI TENUTA More informationQuantity required : 2 |
||||||
|
9 |
Rondelle |
||||||
|
10 |
Caoutchouc |
||||||
|
11 |
Vis bride |
||||||
|
12 |
DADO M14 |
||||||
|
13 |
AP8910433 - VITE TE M8X12 More informationQuantity required : 8 |
||||||
|
14 |
Plaque |
||||||
|
15 |
AP8910294 - GOMMINO More informationQuantity required : 8 |
||||||
|
16 |
Vis bride |
||||||
|
17 |
Bride gauche |
||||||
|
18 |
Bride droite |
