Vehicle Exploded View - APRILIA QUASAR 50 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

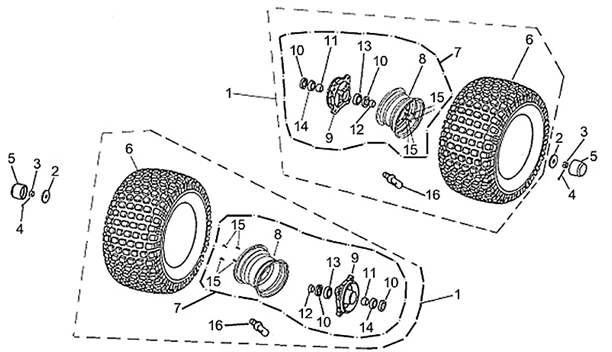

Chassis : 28.20 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/307/Quasar_50_2003_28.20.PNG)
1 |
RUOTA ANT. 16*8-7 |
||||||
|
1 |
RUOTA ANT. 19*7-8 |
||||||
|
2 |
Rondelle plate |
||||||
|
3 |
Ecrou autobloqu. |
||||||
|
4 |
Goupille |
||||||
|
5 |
AP8910215 - CAPPUCCIO More informationQuantity required : 2 |
||||||
|
6 |
Pneu |
||||||
|
6 |
PNEUMATICO POST. 19*7-8 |
||||||
|
7 |
Roue AV nue cpl. |
||||||
|
7 |
Roue AV nue cpl. |
||||||
|
8 |
Roue nue |
||||||
|
8 |
Roue nue |
||||||
|
9 |
Tamb.AV cpl. |
||||||
|
10 |
Joint spi |
||||||
|
11 |
Entretoise |
||||||
|
12 |
Entretoise |
||||||
|
13 |
Roulement |
||||||
|
14 |
Roulement |
||||||
|
15 |
VITE TE M10X20 |
||||||
|
16 |
AP8910207 - VALVOLA More informationQuantity required : 2 |
